SAREF for Energy Flexibility
- Latest version:
- https://saref.etsi.org/saref4ener/
- Permanent IRI for this version (v2.1.1)
- https://saref.etsi.org/saref4ener/v2.1.1/
- Previous version
- https://saref.etsi.org/saref4ener/
- ETSI Technical Specification
- https://www.etsi.org/deliver/etsi_ts/103400_103499/10341001/02.01.01_60/ts_10341001v020101p.pdf
- Sources on the SAREF Forge
- https://saref.etsi.org/sources/saref4ener/
- Publication Date
- 2025-06-05
- Last Modification Date
- 2025-06-05
- Creators
- Contributors
- Ontology requirements and tests
- requirements and tests
- Imported Ontologies
- <https://saref.etsi.org/core/v4.1.1/>
- Prefix and namespace declaration:
- Turtle:
@prefix s4ener: <https://saref.etsi.org/saref4ener/> .- SPARQL:
PREFIX s4ener: <https://saref.etsi.org/saref4ener/> - Download serialization:
-
- License:
-
Abstract
The technical specification ETSI TS 103 410-1 is a technical specification of SAREF4ENER, an OWL-DL ontology that extends SAREF [1] for the energy domain.
The technical specification ETSI TS 103 410-1 was created based on the CENELEC standards EN 50631:2023, parts 1 [4], 2 [5], 3-1 [6] and 41 [7], and EN 50491122 [8], in collaboration with the Horizon 2020 project Interconnect [i.8], and with industry associations such as EEBUS(http://www.eebus.org/), Energy@Home and the S2 consortium (https://s2standard.org/#consortium), which includes KNX (https://www.knx.org/) and the Flexible power Alliance Network (FAN, https://flexible-energy.eu/).
The EN 50631 "Household appliances network and grid connectivity" series, produced by the CENELEC/Technical Committee (CLC/TC) 59X on "Performance of household and similar electrical appliances", defines the information exchange between smart appliances and management systems in homes and buildings including energy management. Part 1 of the standard (EN 50631-1 [4]) defines the data models for interoperable connected household appliances that are derived from a logical decomposition of use cases into functional blocks. Part 2 (EN 50631-2 [5]) maps the generic use cases, use case functions, and generic data definitions to categories of appliances (e.g. washer, dishwasher, water heater, HVAC devices). Part 3-1 (EN 50631-3-1 [6]) maps the generic use case functions and data models defined in Part 1 to specific languages such as SPINE and SPINE-IoT. Part 4-1 (EN 50631-4-1 [7]) defines the Communication Protocol Specific Aspects in terms of SPINE, SPINE-IoT and Smart Home IP (SHIP).
The EN 50491 "General requirements for Home and Building Electronic Systems (HBES) and Building Automation and Control Systems (BACS)" standard is produced by the CLC/TC 205 on HBES. EN 50491122 [8] specifies the fundamental aspects of interoperability for the S2 interface and the related data exchange between a CEM and the Resource Managers within the home and building premises. It defines a communication standard for energy flexibility and energy management, which helps to optimize the use of energy of smart devices in homes and buildings. Energy flexibility, which can be offered by (a combination of), for example, PV systems, EV chargers, batteries, and (hybrid) heat pumps, is the ability to alter the use of energy without a significant impact on the user's comfort. Energy flexibility plays an important role in the digital energy transition.
The SAREF4ENER extension should be used to annotate (or generate) a neutral (protocol-independent) set of messages, for example by energy smart appliances manufacturers, to exchange information at the home/buildings premises among smart appliances, their Resource Manager (RM) and a Customer Energy Manager (CEM) to efficiently optimize energy consumption and production within the constraints set by the user.
The application of SAREF4ENER focuses on demand response scenarios, in which customers can offer energy flexibility to the Smart Home and Smart Grid. Energy smart devices and energy managers communicate with each other to achieve the best possible result. Energy smart devices can express their demand/production and flexibility, energy managers are responsible to find the most optimal measure between energy consumption and energy production of energy smart devices based on the customer's chosen configuration and the characteristics of the devices. Next to selfconsumption optimization, the Smart Grid can influence the quantity or patterns of use of the energy consumed by customers when grid-energy-supply systems are constrained, e.g. during peak hours.
This can be realized by connecting a smart home device with an Energy Management System (EMS) (see EN 50631:2023, parts 1 [4], 2 [5], 3-1 [6] and 4-1 [7]) or by means of a Resource Manager (RM) (see EN 50491122 [8]).These scenarios involve (but are not limited to) the following use cases. The SAREF4ENER parts applicable per use case are primarily decided by the types of devices that are involved:
- Use case 1: flexible start of smart appliances. Smart energy management should be able to (re-)schedule appliances in certain modes and preferred times using power profiles to optimize energy efficiency and accommodate the customer's preferences. The user should be able to decide on a preferred interval within which the energy manager computes the starting time that optimizes the energy usage. Interruption options, such as pausing a task, can further optimize the energy usage.
- Use case 2: monitoring and control of the start, status, and power consumption of the appliances. It is essential for an energy manager to be aware of the power consumption of all devices it optimizes for, including devices that are not smart.
- Use case 3: reaction to special requests from the Smart Grid, for example, incentives to consume more or less depending on current energy availability, or emergency situations that require temporary reduction of the power consumption.
- Use case 4: limitation of power consumption. This use case covers power limits that are sent by the energy manager, as well as power limits set by the manufacturer in the case of a lost connection (fail-safe limits), as well as contractual and nominal power limits.
- Use case 5: incentive table. This use case aims to influence the energy usage via a set of incentives that the energy consumer and energy manager negotiate about.
- Use case 6: description of the energy flexibility capabilities of any type of device in a (smart) home/building in the information exchange of such devices with resource and energy managers. Energy flexibility, which can be offered by (a combination of), for example, PV systems, EV chargers, batteries, and (hybrid) heat pumps, is the ability to alter the use of energy without a significant impact on the user's comfort [i.5].
- Use case 7: Interoperable data exchange between a Distribution System Operator (DSO) and other market parties, such as services providers and flexibility aggregators to support:
- network flexibility that can be used by network operators to manage the electricity grids more efficiently and to provide a potential additional revenue stream to the consumers without limiting their consumer behaviour patterns [i.12]; and
- increased grid observability for home appliances that are mostly passive and not actively monitored, enabling a faster identification of potential outages and electricity quality issues [i.12].
These use cases are associated with the user stories described in [i.3], which include, among others, the following examples:
- User wants to do basic settings of his/her devices;
- User wants to know when the washing machine has finished working;
- User wants the washing done by 5:00 p.m. with least electrical power costs;
- User likes to limit his/her own energy consumption up to a defined limit;
- User allows the EMS to reduce the energy consumption of his/her freezer in a defined range for a specific time, if the grid recognizes (severe) stability issues;
- Grid related emergency situations (blackout prevention).
The prefixes and namespaces used in SAREF4ENER and in the technical specification ETSI TS 103 410-1 are listed in the Namespace Declarations section.
Table of Content
Introduction
General Overview
The main addition that SAREF4ENER provides on top of SAREF Core is a set of saref:Profile classes that describe the energy flexibility capabilities of a device (see clause 4.2.3). These profiles are defined according to the SPINE/SPINE IoT [6] and the S2 [8] data models, with some profiles occurring in both [6] and [8], while some other profiles occurring either in [6] or [8]. For example, the Power Profile flexibility type is described in both S2 and SPINE/IoT, thus is merged into a single representation in SAREF4ENER (see clause 4.2.3.1). The Power Envelope defined in S2 and Power Limits defined in SPINE also present similarities which are therefore specified in SAREF4ENER using several shared concepts (see clause 4.2.3.6). The remaining types of flexibility are unique to either S2 or SPINE, namely, Incentive Tables are defined only in SPINE, whereas Operation Mode, Fill Rate Based, and Demand Driven energy flexibility are control types defined only in S2 [i.5].
The SAREF4ENER extension additionally describes flexibility instructions (see clause 4.2.5) separately from the flexibility profiles. These instructions describe the communication taking place between a device and the EMS to decide on the energy flexibility plan, such as offers from the device and requests from an EMS. A real-time check on the monitoring of power consumption is facilitated via the reuse of the main SAREF module and the load control use case (see clause 4.2.4). Finally, the SAREF4ENER extension provides a modelling approach for data points and time series (see clause 4.2.6), which is necessary for modelling the various forecasts and data elements involved.
An overview of the SAREF4ENER (V2.1.1) ontology is provided in Figure 1. In the image, classes are represented as rectangles. Relationships (object properties) between entities are represented as arrows. Arrows are additionally used to represent some RDF, RDF-S and OWL constructs, more precisely: plain arrows with white triangles represent the rdfs:subClassOf relation between two classes. The origin of the arrow shall be considered as the subclass of the entity at the destination of the arrow. Dashed arrows accompanied by the expression rdf:type are used to indicate that the individual at the origin of the arrow is an instance of the class placed at the end of the arrow. Datatype properties and class restrictions are presented as plain text and positioned within the boxes of the rectangles. The green colour is used to distinguish SAREF core entities. The blue colour is used for highlighting the classes and properties already existing in the previous version of SAREF4ENER (V1.1.2). The white colour is used to denote the classes and properties that have been added in the SAREF4ENER version specified in the technical specification ETSI TS 103 410-1 (V2.1.1). Note that Figure 1 aims at showing a global overview of the main classes of SAREF4ENER and their mutual relations. More details on the different parts of Figure 1 are provided in the rest of the technical specification ETSI TS 103 410-1 .
Device
This extension adds several properties to the existing saref:Device which may be used to describe additional device details to the basic properties already defined in SAREF core.
Flexibility Profile
Foreword
The SAREF4ENER extension defines different energy flexibility profiles that can be offered by a saref:Device. They are: s4ener:PowerProfile, s4ener:PowerLimitProfile, s4ener:DemandDrivenProfile, s4ener:OperationModeProfile, s4ener:FillRateProfile, s4ener:IncentiveTableProfile, and s4ener:PowerEnvelopeProfile. They are all subclasses of s4ener:FlexibilityProfile which is in turn a subclass of saref:Profile.
Power Profile

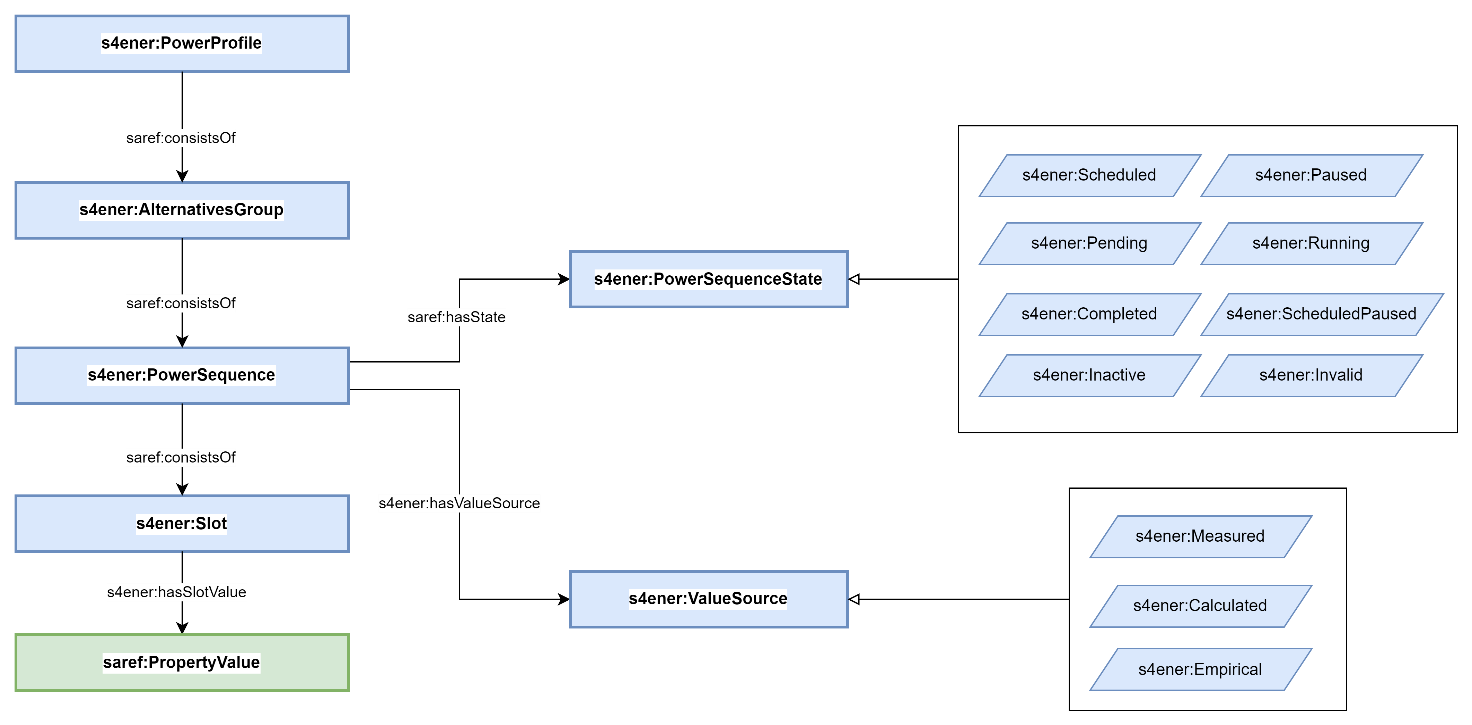

A s4ener:PowerProfile describes the power usage of a particular task of a device that can be known or predicted beforehand, such as in the case of white goods like a washing machine. The s4ener:PowerProfile is used by a saref:Device to expose the power sequences that are potentially relevant for the energy manager. A saref:Device can expose a s4ener:PowerProfile, which consists of one or more alternative plans (s4ener:AlternativesGroup class). A s4ener:AlternativesGroup consists of one or more power sequences (s4ener:PowerSequence class), and a s4ener:PowerSequence consists of one or more slots (s4ener:Slot class). Inversely, a s4ener:Slot belongs to only and exactly one s4ener:PowerSequence, which, in turn, belongs to only and exactly one s4ener:AlternativesGroup, which, in turn, belongs to only and exactly one s4ener:PowerProfile. A s4ener:PowerProfile belongs to only and exactly one saref:Device.
The s4ener:AlternativesGroup consists of one or more power sequences (s4ener:PowerSequence) and, inversely, a s4ener:PowerSequence belongs to only and exactly one s4ener:AlternativesGroup. The s4ener:PowerSequence consists of one or more slots (s4ener:Slot) and, inversely, a s4ener:Slot belongs to only and exactly one s4ener:PowerSequence.
Demand Driven Profile

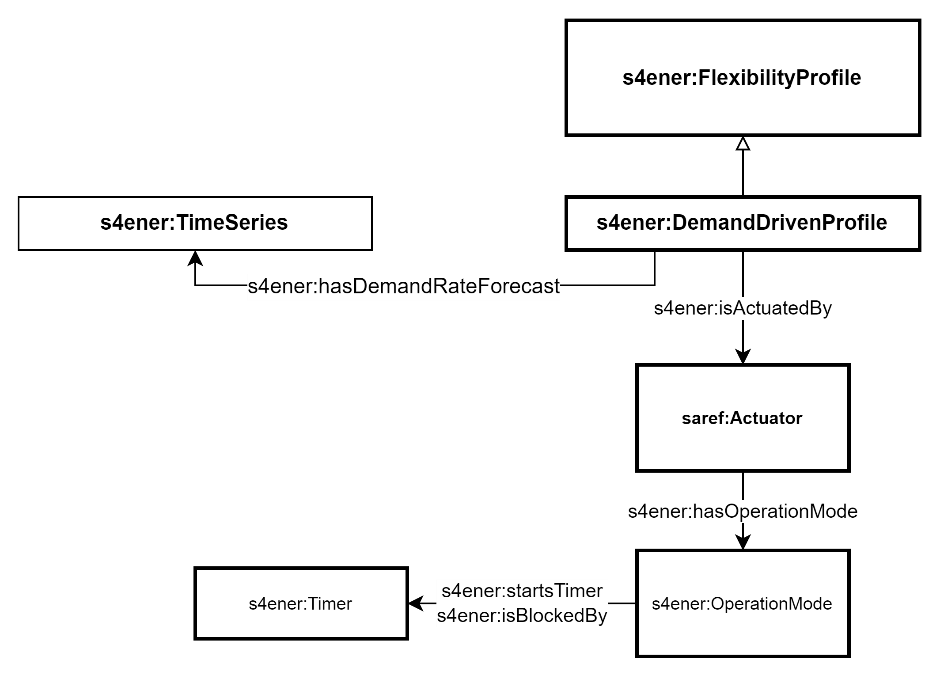

The s4ener:DemandDrivenProfile can be used for devices that can consume different types of energy resources such as electricity or natural gas, but that lack a way of buffering that energy. This may for example be a hybrid heat pump that is powered using either electricity of gas. The power demand is determined by the device, but the customer energy manager can choose how to generate that power.
The profile contains a set of actuators that describe the various ways that the demanded energy can be provided. These actuators may be (part of) the actual saref:Device that offers this profile. The forecast of the average demand rate (i.e. the amount of energy, heat, and any other resource that needs to be produced by a device in the near future) can be expressed by defining time series (s4ener:TimeSeries).
Fill Rate Profile

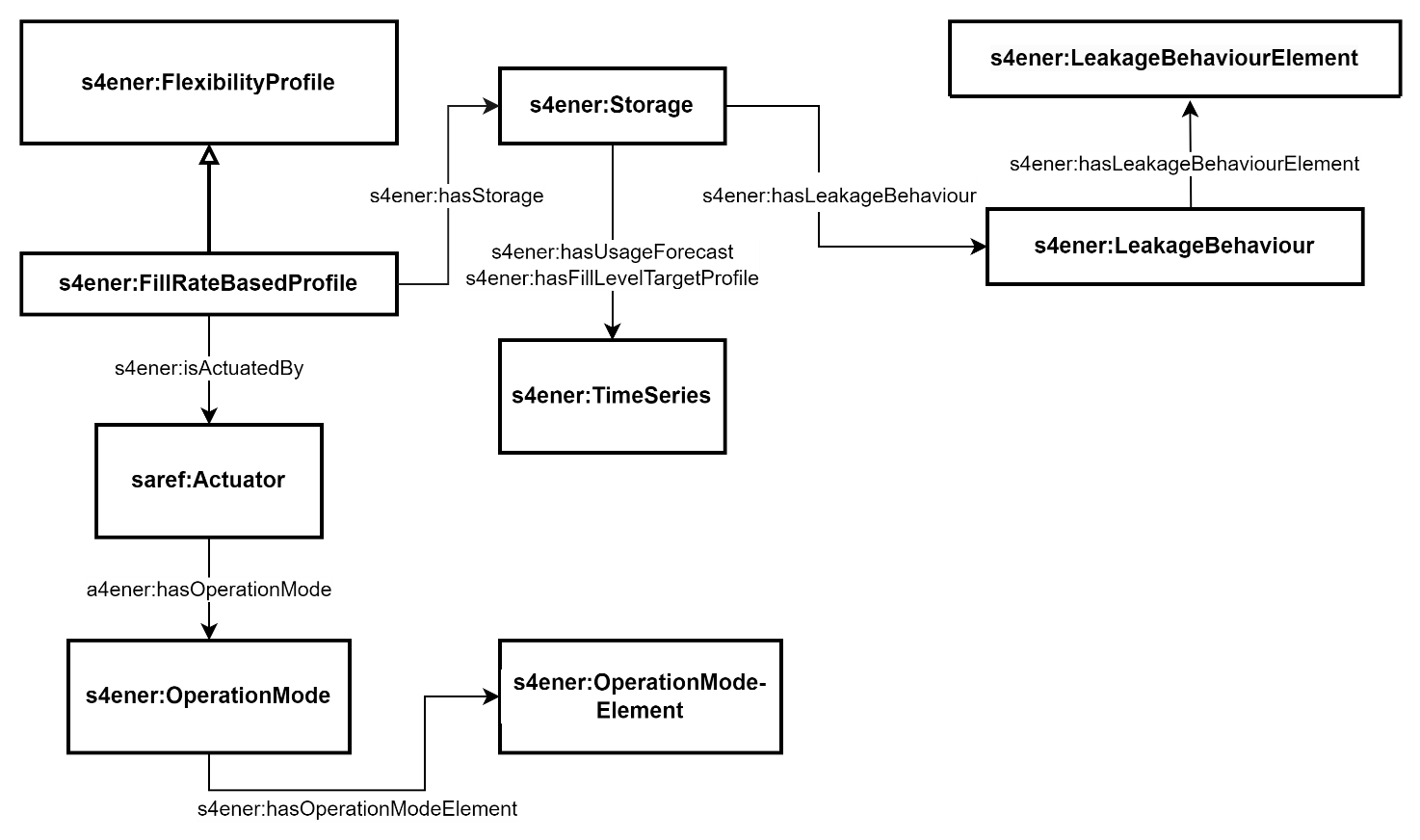

The s4ener:FillRateProfile can be used for devices that can store energy (s4ener:Storage), such as heat pumps with a buffer, EVs, batteries, and even fridges and freezers. The actuators associated with this fill rate profile can consume energy to fill the buffer. The information regarding the leakage behaviour of the storage and its fill level (i.e. a measure expressing how full the storage is) can respectively be defined through the classes s4ener:LeakageBehaviour and saref:Observation via the properties s4ener:hasLeakageBehaviour and s4ener:presentFillLevel, respectively. The s4ener:LeakageBehaviour is always associated with an element detailing the leakage behaviour of the storage (s4ener:LeakageBehaviourElement). Ultimately, certain storage devices might have a fill-level target profile (s4ener:FillLevelTargetProfile) with its associated s4ener:FillLevelTargetProfileElement.
Incentive Table Profile

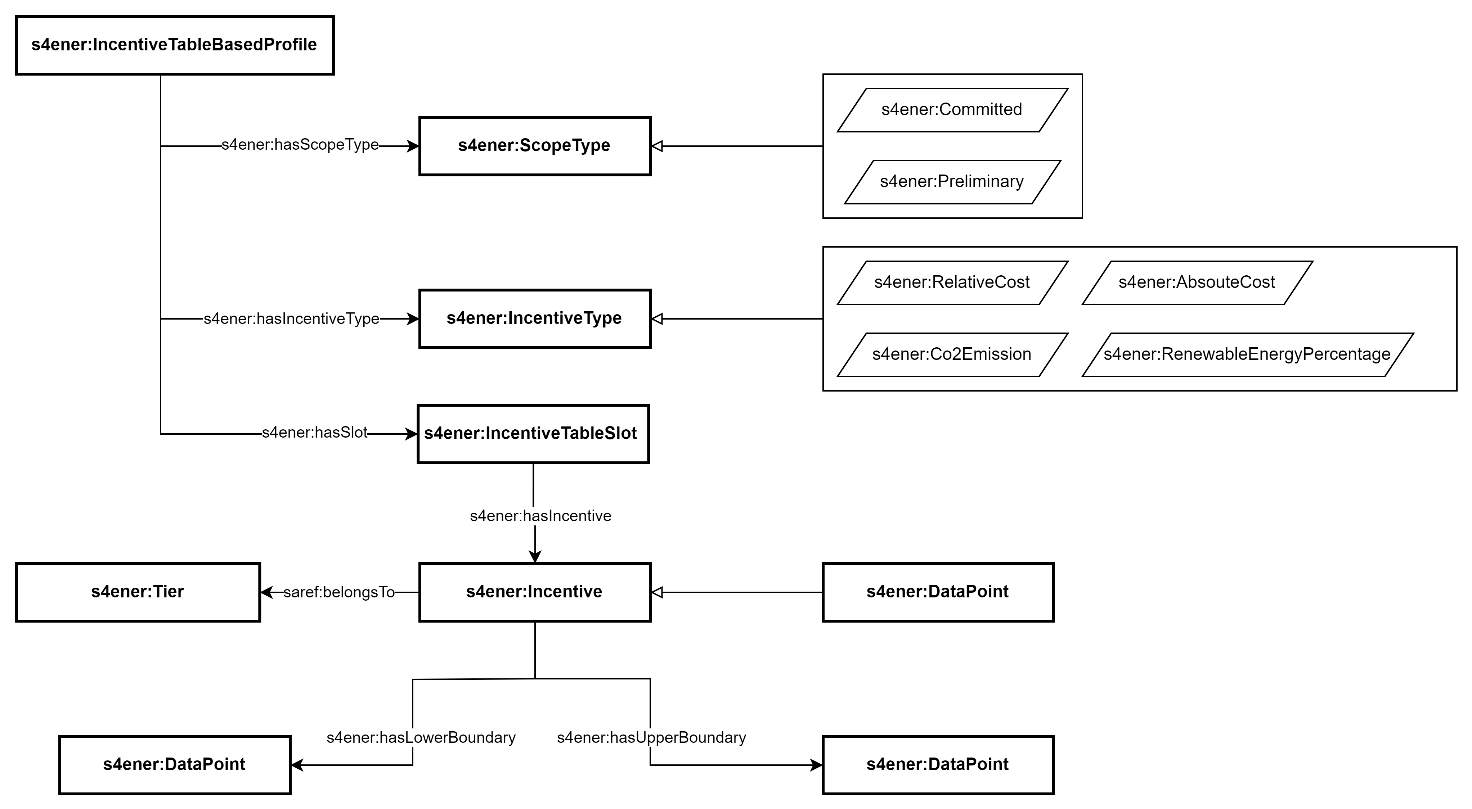

The s4ener:IncentiveTableProfile can be used to describe an incentive table, compiled of incentive table slots (s4ener:IncentiveTableSlot) as well as a power plan (s4ener:PowerPlan). Both are used to negotiate the allocation of upcoming energy usage of a device between the energy manager and the device. The incentive table is used by the energy manager to express the availability of energy via real and/or artificial incentives or costs over time. The device itself uses the table to negotiate the own demand and request the allocation by sending the resulting power plan to the energy manager.
Incentive types can be expressed in the form of relative costs (s4ener:RelativeCost), absolute costs (s4ener:AbsoluteCost), CO2 emissions (s4ener:CO2Emission), and renewable energy percentage (s4ener:RenewableEnergyPercentage). An incentive table also defines a scope type (s4ener:ScopeType) to indicate whether it is a preliminary (s4ener:Preliminary) or committed version (s4ener:Committed).
An incentive table consists of a number of slots (s4ener:IncentiveTableSlot) where each slot may contain a series of incentives (s4ener:Incentive) representing various tiers (s4ener:IncentiveTableTier
). Each tier may be linked to a particular energy source, such as the grid, solar panels, or surplus power. Each incentive describes the cost, expressed as a unit applicable to the s4ener:IncentiveType, for that power source in the particular (time) slot. The lower and optional upper boundary (s4ener:DataPoint) describe for each incentive at which level of power consumption it becomes applicable.

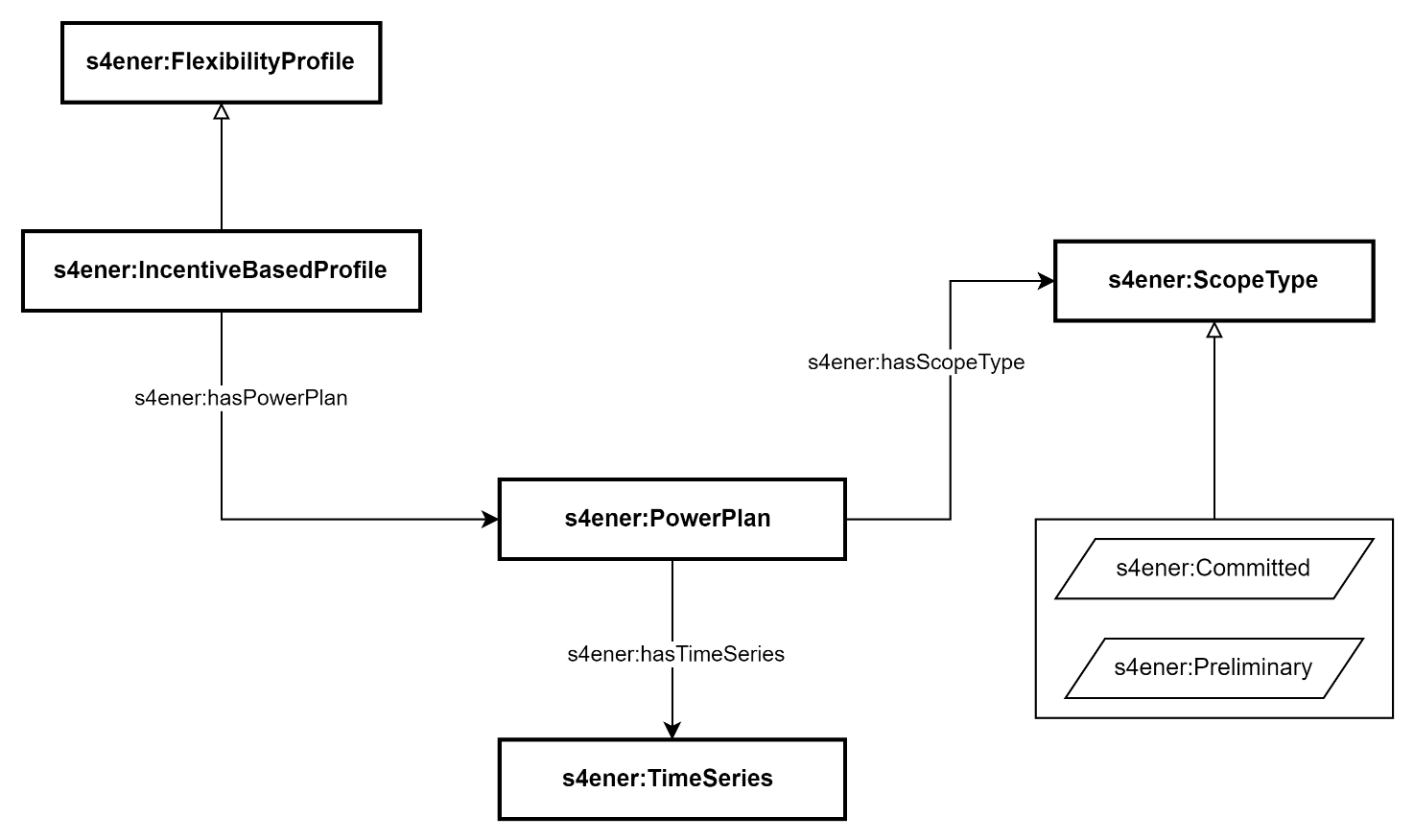

The power plan of a device is defined by a series of sets of data points (s4ener:TimeSeries). Each set of data points contains a time interval (time:Interval), a relation to a property (s4ener:Power), a binding to a minimum (s4ener:Minimum), average (s4ener:Average) or maximum (s4ener:Maximum) value and the value itself (saref:Observation). Finally, it also contains a scope type (s4ener:ScopeType) to indicate whether it is a preliminary (s4ener:Preliminary) or committed value (s4ener:Committed).
An incentive table profile can be used with any type of device.
Operation Mode Profile

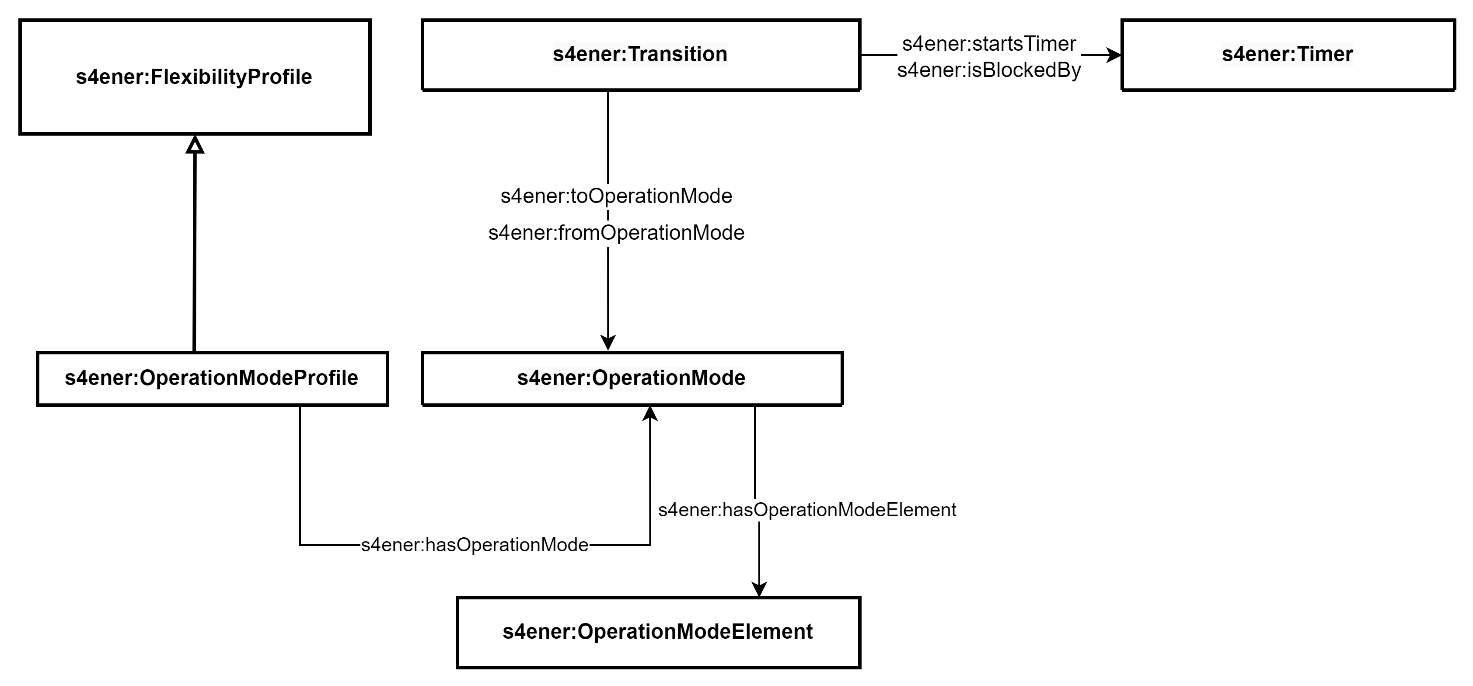

Devices that offer the s4ener:OperationModeProfile can control the amount of power that they generate and/or consume, such as diesel generators and variable electrical resistors. The states in which devices fall in, such as "running at reduced power" or "running at full power", can be described as operation modes (s4ener:OperationMode). These operation modes have therefore been modelled as subclasses of saref:State. Transitions between operation modes can be defined as s4ener:Transition with associated timers (s4ener:Timer) that specify the minimum duration of a particular operation model.
Power Limitation
Power Envelope Profile

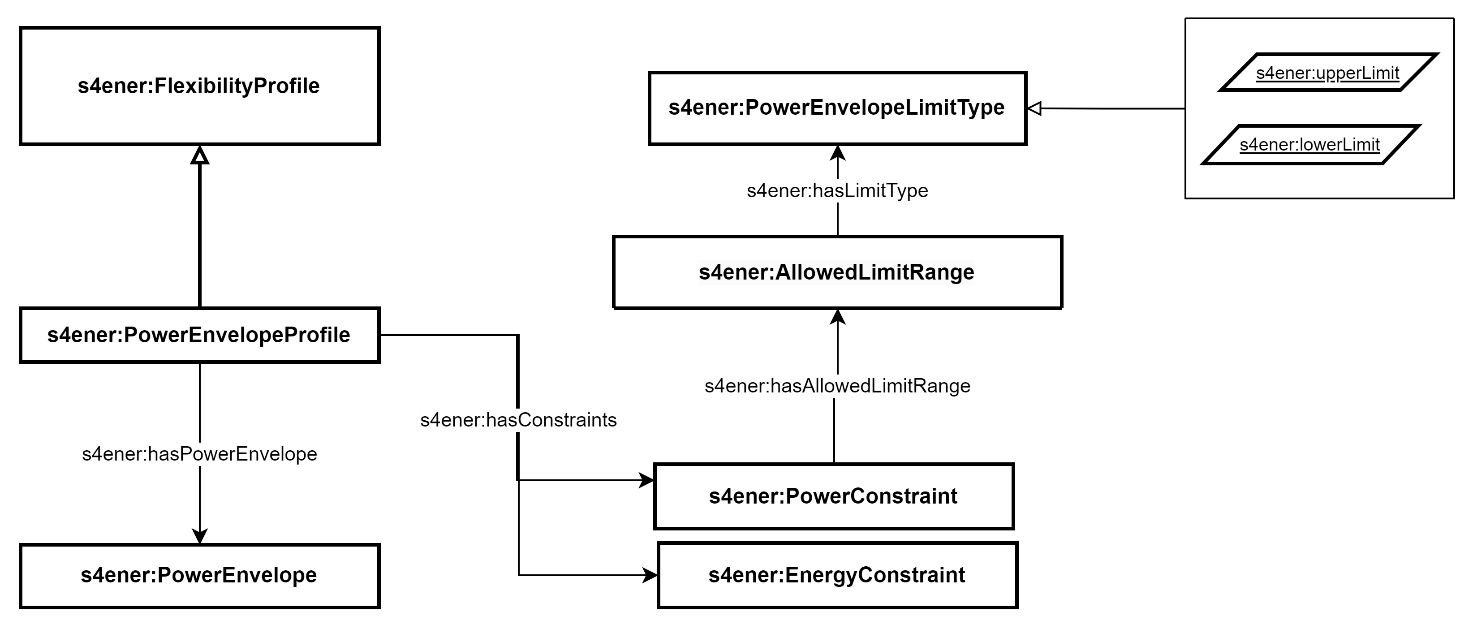

A saref:Device offers a s4ener:PowerEnvelopeProfile when the device is operating within a minimum and maximum amount of power for energy production and/or consumption per time block, but the production or consumption cannot be directly regulated by the energy manager. A PV panels inverter is a typical example, because the energy produced is dependent on the amount of sunshine. The EMS may constrain the power production of the PV panels below its potential to lower a peak.
The minimum and maximum amount of power that can be generated and/or spent by a device in a certain timespan can be set by instantiating the s4ener:PowerEnvelope and its corresponding s4ener:PowerConstraint. Power constraints are always bound to the allowed power limit ranges of a device (s4ener:AllowedLimitRange). The energy level of the s4ener:PowerEnvelope can be defined by using s4ener:TimeSeries. The type of the allowed limit ranges of a device (i.e. upper limit or lower limit) can be defined through the class s4ener:PowerEnvelopeLimitType. Commodity quantities relating to s4ener:PowerEnvelope can be described through the class saref:Commodity.

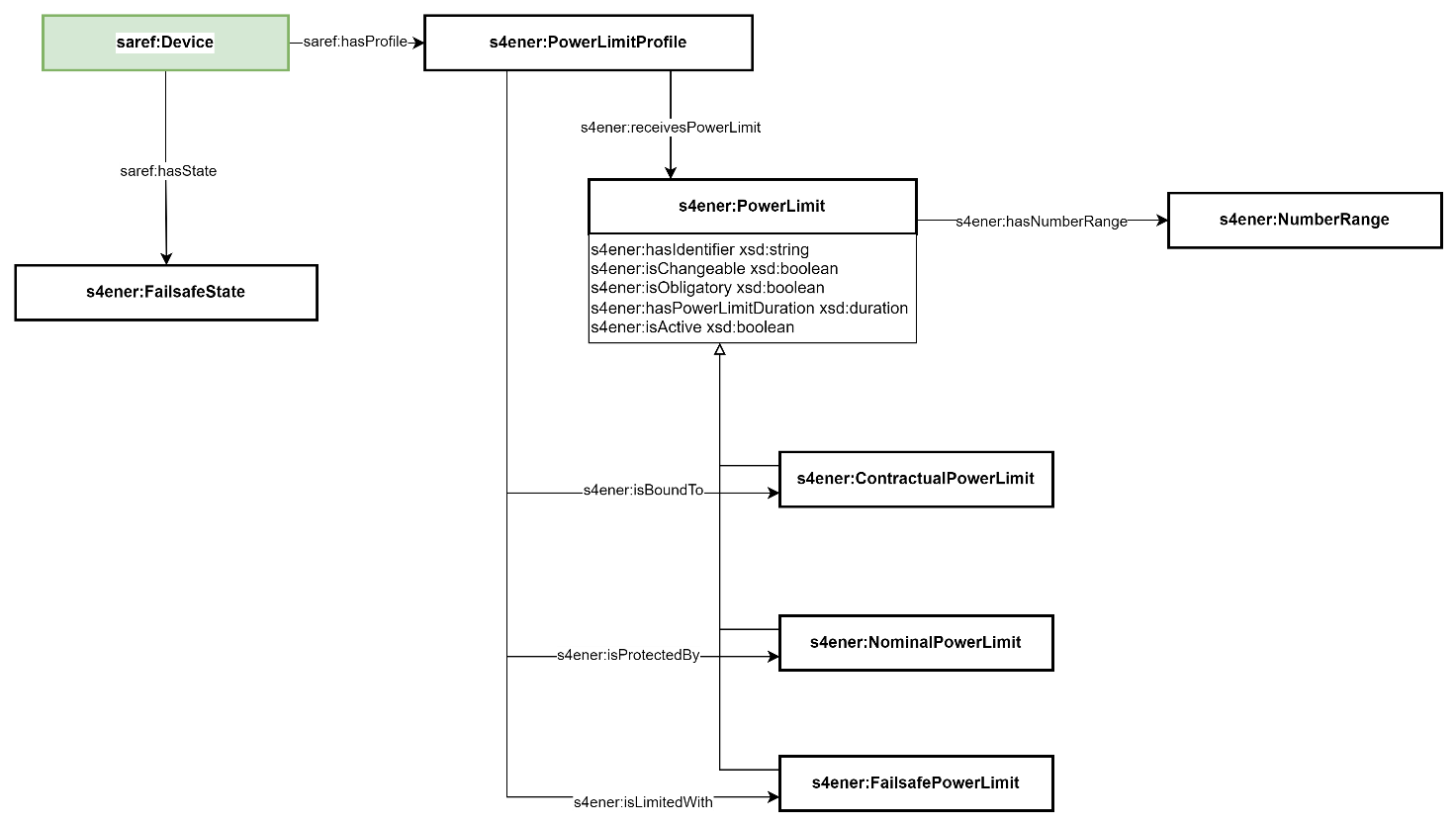

Power Limit Profile
SAREF4ENER further specifies allowed limit ranges through the classes s4ener:ContractualPowerLimit, s4ener:NominalPowerLimit, and s4ener:FailsafePowerLimit. They are all subclasses of s4ener:PowerLimit which is the general upper-class of power limits. Power limits can be toggled active or inactive via the s4ener:isActive property. A device has nominal power consumption and/or production values (s4ener:NominalPowerLimit) when the manufacturers define quantifiable and measurable limits that has not to be exceeded. The failsafe values provided by the manufacturers has to be given as instances of saref:Observation. In case the communication between a device and the energy manager is interrupted, the device enters a fail-safe state (s4ener:FailsafeState). Fail-safe values (s4ener:FailsafePowerLimit) apply until the communication is reestablished, with an optional minimal duration of the fail-safe state given in the s4ener:hasFailsafeDuration. Ultimately, a saref:Device is always bound to a s4ener:ContractualPowerLimit (which is defined in a specification by the manufacturers) and limited by a s4ener:FailsafePowerLimit.
Load control
This clause presents the part of SAREF4ENER that defines how to model events used in, for example, a direct load management or power curtailing scenario (e.g. use case 3 in clause 4.1). The classes of interest are s4ener:LoadControlEventData, s4ener:LoadControlEventAction, s4ener:LoadControlStateData and s4ener:LoadControlEventState.
The s4ener:LoadControlEventData class is used to represent overload warning severity level and related load control commands to a device. It is characterized by an event ID and a timestamp that represents the time the event information instance was created or received, and the time period that denotes the period of validity of the event. For example, 5 minutes ago an event was received which says that it shall take effect tomorrow from 14:00 to 15:30. In this event the timestamp is "5 minutes ago" and time period is "tomorrow from 14:00 to 15:30".
The s4ener:LoadControlEventAction class expresses the type of actions to be performed as a consequence of a load control event. A s4ener:LoadControlEventAction can be of type "consume" or "produce" to denote consumption or production of energy or power. Values for both consume and produce actions can be s4ener:Emergency, s4ener:Increase, s4ener:Normal, s4ener:Pause, s4ener:Reduce, s4ener:Resume.
The s4ener:LoadControlStateData class expresses the data about the state of an event and is characterized by the same event ID used in the s4ener:LoadControlEventData class, as well as a timestamp, and it is associated to the class s4ener:LoadControlEventState, which can be of type "consume" or "produce" - analogously to a load control event action - and expresses the possible states of a load control event. Values for both consume and produce load control states can be s4ener:EventAccepted, s4ener:EventStarted, s4ener:EventStopped, s4ener:EventRejected, s4ener:EventCancelled, or s4ener:EventError.
Flexibility Communication
Flexibility Request

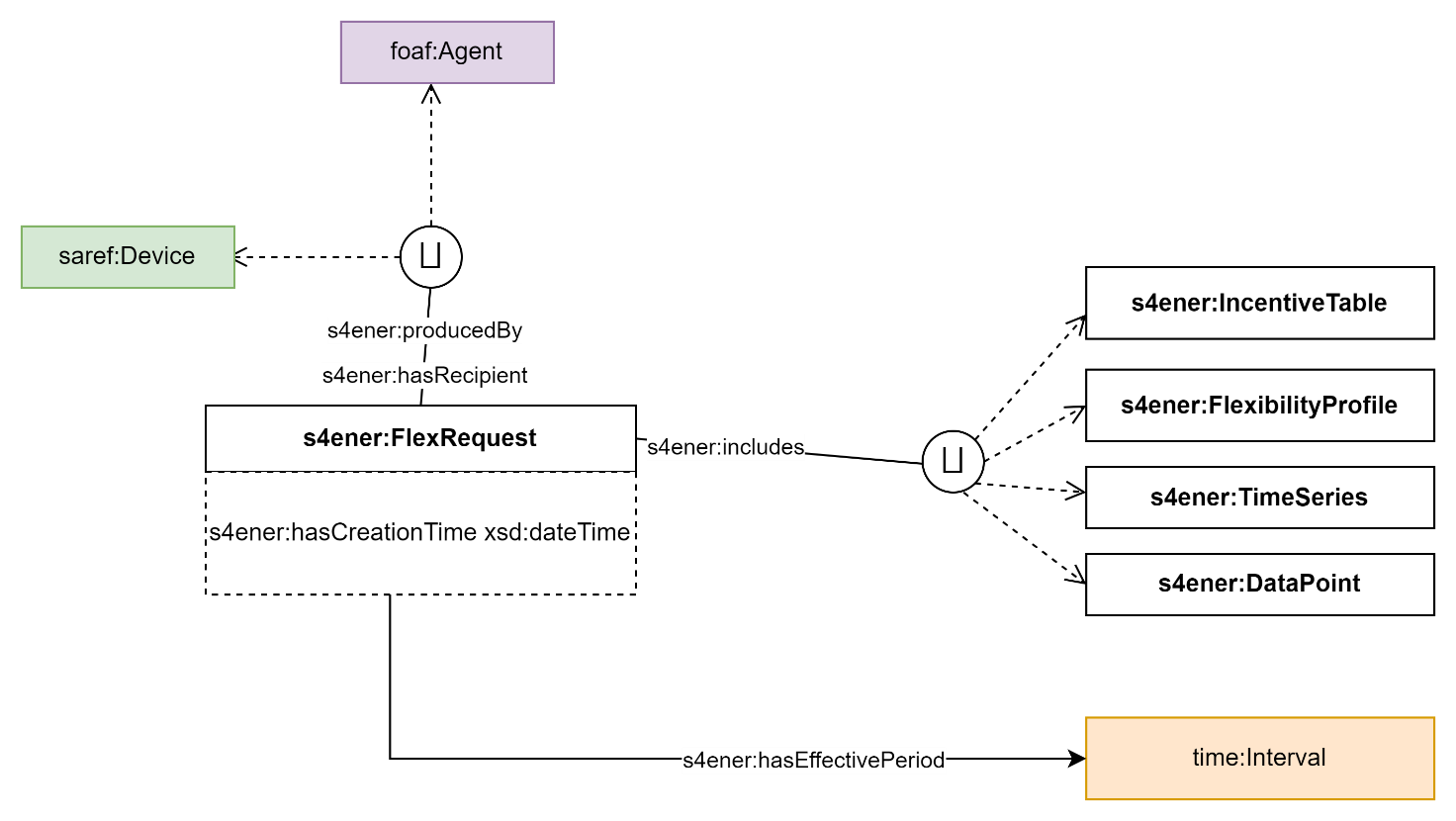

This clause presents how flexibility requests can be modelled in SAREF4ENER (e.g. use case 7 in clause 4.1). This message can be sent by an EMS to a device to inquire for the flexibility it can offer. A flexibility requests can be defined by using the s4ener:FlexRequest class. Flexibility requests can include a s4ener:IncentiveTableProfile, s4ener:FlexibilityProfile, s4ener:TimeSeries and s4ener:DataPoint. An s4ener:FlexRequest can be produced by an agent (foaf:Agent) or device (saref:Device) and be sent to either an agent or device. An s4ener:FlexRequest always has an effective period and a creation time expressed through the Time ontology.
Flexibility Offer

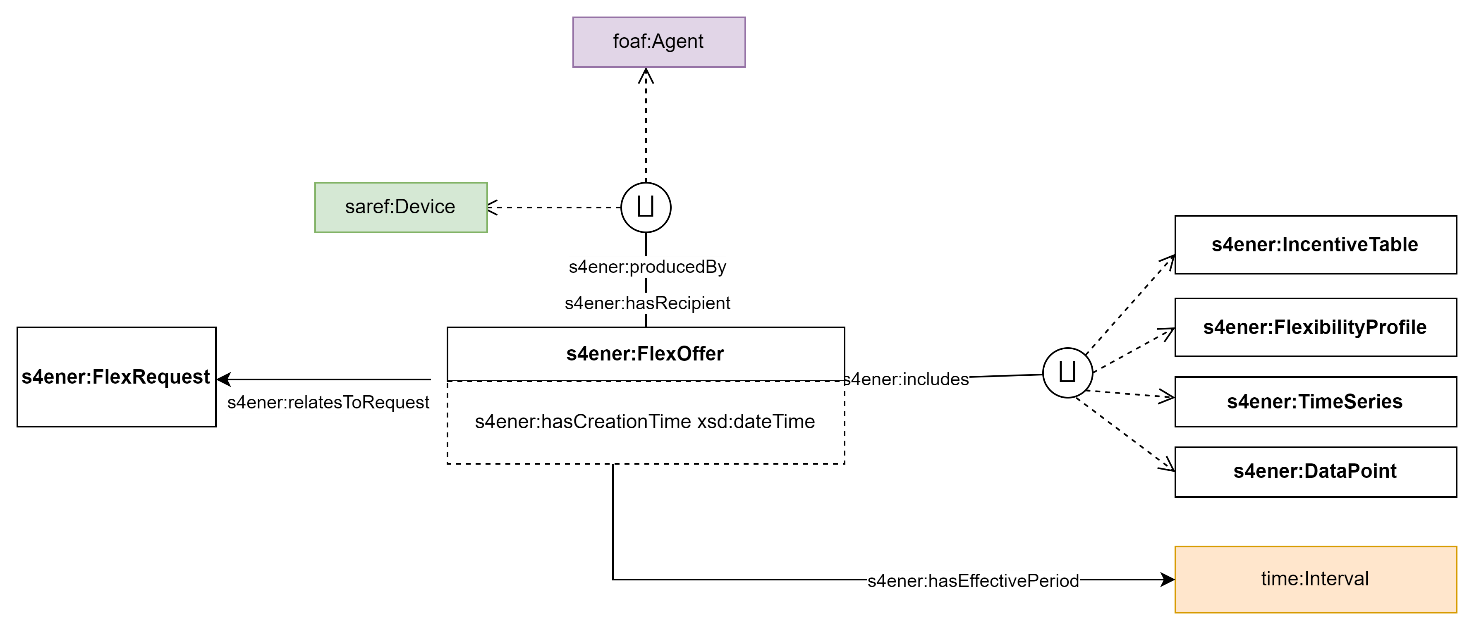

This clause presents how flexibility offers can be modelled in SAREF4ENER (e.g. use case 7 in clause 4.1). This message can be sent by a device to the EMS as a response to a Flexibility Request, indicating the device's flexibility potential. Flexibility offers can be defined by using s4ener:FlexOffer. Flexibility offers can include a s4ener:IncentiveTableProfile, s4ener:FlexibilityProfile, s4ener:TimeSeries and s4ener:DataPoint. A s4ener:FlexOffer can be produced by an agent (foaf:Agent) or device (saref:Device) and it can be sent to either an agent or device. Flexibility offers relate to flexibility requests (s4ener:FlexRequest). A s4ener:FlexOffer always has an effective period and a creation time expressed through the Time ontology.
Flexibility Instruction

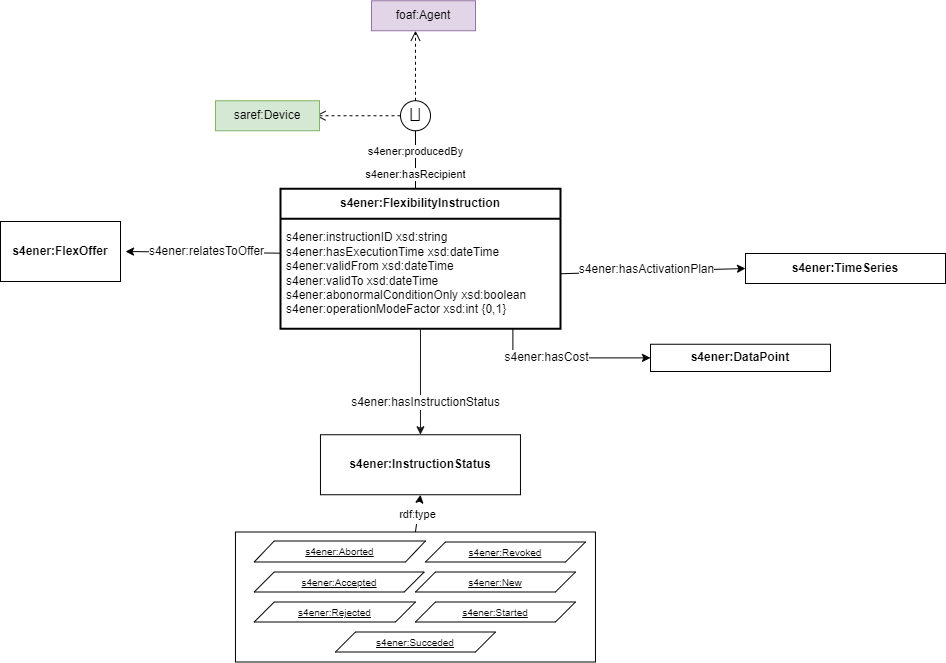

This clause presents how a flexibility instruction can be modelled in SAREF4ENER (e.g. use case 7 in clause 4.1). This class describes the instruction that an EMS sends to a device about how it should operate according to the EMS optimization plan. Flexibility instruction can be defined by using s4ener:FlexibilityInstruction. Flexibility instructions have an activation plan expressed in time-series (s4ener:TimeSeries) and a cost defined as a datapoint (s4ener:DataPoint). A s4ener:FlexibilityInstruction can have an execution time, period of validity, instructionID defined as datatype values. The operation mode factor and the presence of abnormal condition can be specified through the datatype properties s4ener:abnormalConditionOnly and s4ener:hasOperationModeFactor. Flexibility instructions relate to flexibility requests (s4ener:FlexRequest). An s4ener:FlexibilityInstruction can be produced by an agent (foaf:Agent) or device (saref:Device) and be sent to either an agent or device. An s4ener:FlexibilityInstruction always has an effective period and a creation time expressed through the Time ontology.
Data Points and Time Series
The s4ener:DataPoint is an atomic piece of information about a certain observable quantity in nature that can contain a numerical value and a corresponding unit of measure [i.7]. An s4ener:TimeSeries is related to the s4ener:DataPoint class via the s4ener:hasDataPoint property and is defined as an ordered sequence of data-points of a quantity that is observed at spaced (not necessarily equally spaced) time intervals.
The s4ener:DataPoint is defined as a subclass of saref:Observation and, as such, inherits the saref:hasResult and saref:hasTimestamp properties. Therefore, if the combination of a result and timestamp is sufficient to represent a datapoint, then the SAREF concepts for observation can be directly reused. However, it can be noticed that often, especially when representing timeseries of datapoints in a forecast, a number of additional properties are needed.
Examples
Clause 4.3 provides a set of examples to show the usage of the various SAREF4ENER clauses. The following are available on the SAREF Labs repository for SAREF4ENER:
- Clause 4.2.3.1: Power Profile Example
- Clause 4.2.3.2: Demand Driven Profile
- Clause 4.2.3.3: Fill Rate Profile
- Clause 4.2.3.4: Incentive Table Profile
- Clause 4.2.3.5: Operation Mode Profile
- Clause 4.2.3.6.1: Power Envelope Profile
- Clause 4.2.3.6.2: Power Limit Profile
- Clause 4.2.6 is exemplified throughout the flexibility profile examples mentioned above.
Namespace Declarations
- owl:
- http://www.w3.org/2002/07/owl#
- rdf:
- http://www.w3.org/1999/02/22-rdf-syntax-ns#
- saref:
- https://saref.etsi.org/core/
- xsd:
- http://www.w3.org/2001/XMLSchema#
- dcterms:
- http://purl.org/dc/terms/
- rdfs:
- http://www.w3.org/2000/01/rdf-schema#
- time:
- http://www.w3.org/2006/time#
- vann:
- http://purl.org/vocab/vann/
- foaf:
- http://xmlns.com/foaf/0.1/
- s4ener:
- https://saref.etsi.org/saref4ener/
Classes
- Actuator level
- Actuator switch
- Allowed limit range
- Alternatives group
- Contractual Power Limit
- Demand Driven Based Control Instruction
- Data point
- Demand driven control
- Device
- End Interruption Instruction
- End time duration Description
- Energy Constraint
- Event action consume
- Event action produce
- Event state consume
- Event state produce
- Fill Rate Based Control Instruction
- Failsafe Power Limit
- Fail-safe state
- Fill level target profile
- Fill level target profile element
- Fill rate control
- Flex offer
- Flex request
- Flexibility Instruction
- Flexibility Profile
- Gaussian data point
- Incentive
- Incentive table based profile
- Incentive table slot
- Incentive table tier
- Incentive Type
- Instruction Status
- Interruption Instruction
- Leakage behaviour
- Leakage behaviour element
- Load Control event action
- Load control event data
- Load control event state
- Load control state data
- Nominal Power Limit
- Number range
- Operation Mode Based Control Instruction
- Operation Mode
- Operation Mode Element
- Operation mode control
- Power Envelop Based Control Instruction
- Power Profile Based Control Instruction
- Power constraint
- Power Envelope
- Power Envelope Consequence Type
- Power Envelope Limit Type
- Power envelope control
- Power Limit
- Power limit profile
- Power plan
- Power profile control
- Power range
- Power sequence
- Power profile container
- Power sequence element
- Power sequence state
- Power sequence status
- Power source
- Role
- Role Type
- Schedule Instruction
- Scope Type
- Slot
- Start Interruption Instruction
- Storage
- Time Series
- Timer
- Transition
- Usage
- Value source
- Value tendency
Actuator level back to ToC or Class ToC
IRI: https://saref.etsi.org/saref4ener/ActuatorLevel
- has super-classes
- saref:Actuatorc
Actuator switch back to ToC or Class ToC
IRI: https://saref.etsi.org/saref4ener/ActuatorSwitch
Basic on/off operations on a simple actuator can be modelled with the ActuatorSwitch class. Whether the function turns a device itself ON or OFF, or whether it switches a specific feature, depends on the implementation. For example, one could model the super freeze program of a freezer using ActuatorSwitch class. An ON command would then activate the super freeze program and an OFF command would deactivate it. This example shall just give an idea how ActuatorSwitch can be used for more purposes than only turning devices on and off.
- has super-classes
- saref:Actuatorc
Allowed limit range back to ToC or Class ToC
IRI: https://saref.etsi.org/saref4ener/AllowedLimitRange
The actual constraints of an Power Envelope Based Profile.
- has super-classes
- owl:Thingc
- has sub-classes
- s4ener:PowerLimitc
- is in domain of
- s4ener:limitTypec
- is in range of
- s4ener:allowedLimitRangec
Alternatives group back to ToC or Class ToC
IRI: https://saref.etsi.org/saref4ener/AlternativesGroup
A collection of power sequences for a certain profile
- has super-classes
- saref:consistsOfop some s4ener:PowerSequencec
saref:consistsOfop only s4ener:PowerSequencec
saref:hasIdentifierdp exactly 1 xsd:unsignedInt
s4ener:belongsToop exactly 1 s4ener:PowerProfilec
s4ener:belongsToop only s4ener:PowerProfilec
Contractual Power Limit back to ToC or Class ToC
IRI: https://saref.etsi.org/saref4ener/ContractualPowerLimit
The contractual power limit of a device
- has super-classes
- s4ener:PowerLimitc
- is in domain of
- s4ener:hasContractualConsumptionMaxc
s4ener:hasContractualProductionMaxc - is in range of
- s4ener:isBoundToc
Demand Driven Based Control Instruction back to ToC or Class ToC
IRI: https://saref.etsi.org/saref4ener/DDBCInstruction
An Instruction as specified for an Demand Driven Based Control Profile.
- has super-classes
- s4ener:FlexibilityInstructionc
Data point back to ToC or Class ToC
IRI: https://saref.etsi.org/saref4ener/DataPoint
A data point is a quantity that is extended with various pieces of process information, namely
- A creation time (instant). This is the point in time when the data point was created, which is not necessarily the time for which it is valid. In the case of soft-sensors or forecasters, a data point might have been created ahead of time, in the case of a direct observation a data point might created at its time of validity (or at the end of its validity time interval) and in the case of an archived value the data point might have been created after the fact.
- A validity time (temporal entity) which will be named "time stamp". The validity time is the instant or interval in time in which a specific quantity is in effect. For example a room temperature might be measured at 12:00, which means it is in effect at this very instant. A specific amount of energy might me expended within the time-slot between 12:30 and 12:45, which means that the energy observation is in effect during this time interval.
- A location or topological association. For example, an observation might be taken in a specific room, a power avarage might have been measured by a specific meter, a forecast might be valid for a specific region or grid segment. This association is therefore not always a location.
- has super-classes
- saref:Observationc
s4ener:hasCreationTimedp max 1
s4ener:hasEffectivePeriodop exactly 1 time:Intervalc
s4ener:hasQuantiledp max 1
s4ener:hasUpdateRatedp max 1
s4ener:hasUsageop only s4ener:Usagec - has sub-classes
- s4ener:GaussianDataPointc
s4ener:Incentivec - is in domain of
- s4ener:belongsToTimeSeriesc
s4ener:hasQuantilec - is in range of
- s4ener:hasCostc
s4ener:hasDataPointc
s4ener:hasLowerBoundaryc
s4ener:hasUpperBoundaryc
Demand driven control back to ToC or Class ToC
IRI: https://saref.etsi.org/saref4ener/DemandDrivenProfile
The Flexibility Profile following the Demand Driven strategy.
- has super-classes
- s4ener:FlexibilityProfilec
- is in domain of
- s4ener:hasDemandRatec
s4ener:hasDemandRateForecastc
Device back to ToC or Class ToC
IRI: https://saref.etsi.org/saref4ener/Device
A specialization of a saref:Device that exposes a power profile with power sequences to the CEM. Most of the existing devices can expose at most one power profile, but there are special cases in which more than one power profiles can be exposed by the same device. For example, consider the case of a combined fridge-freezer in which there are 2 logical devices (fridge and freezer) combined in 1 physical device. This combined device can expose 2 power profiles, one for the fridge and one for the freezer. A s4ee:Device (e.g. a household appliance or a smart meter) can also receive events about overload warning severity level and related load control commands (LoadControlEventData)
- has super-classes
- saref:Devicec
saref:hasManufacturerdp max 1
s4ener:brandNamedp max 1
s4ener:deviceCodedp max 1
s4ener:deviceNamedp max 1
s4ener:hardwareRevisiondp max 1
s4ener:hasPowerSourceop min 0
s4ener:receivesop only s4ener:LoadControlEventDatac
s4ener:receivesop min 0 s4ener:LoadControlEventDatac
s4ener:serialNumberdp max 1
s4ener:softwareRevisiondp max 1
s4ener:vendorCodedp max 1
s4ener:vendorNamedp max 1 - has sub-classes
- s4ener:Storagec
- is in domain of
- s4ener:firmwareVersionc
s4ener:hasRolec
End Interruption Instruction back to ToC or Class ToC
IRI: https://saref.etsi.org/saref4ener/EndInterruptionInstruction
An Instruction message indicating when an interruption can end.
- has super-classes
- s4ener:InterruptionInstructionc
End time duration Description back to ToC or Class ToC
IRI: https://saref.etsi.org/saref4ener/EndTimeDurationDescription
The duration description for the end time duration temporal entities
- has super-classes
- time:DurationDescriptionc
Energy Constraint back to ToC or Class ToC
IRI: https://saref.etsi.org/saref4ener/EnergyConstraint
The energy constraint described in the Allowed Limit Range or Power Limit.
- is in domain of
- s4ener:hasLowerAveragePowerc
s4ener:hasUpperAveragePowerc
Event action consume back to ToC or Class ToC
IRI: https://saref.etsi.org/saref4ener/EventActionConsume
An action type used to express a consume action to be performed as a consequence of an event used to send overload warning severity level and related load control commands to a device (e.g. a household appliance or a smart meter).
- has super-classes
- s4ener:LoadControlEventActionc
- has members
- s4ener:Emergencyni, s4ener:Normalni, s4ener:Increaseni, s4ener:Resumeni, s4ener:Reduceni, s4ener:Pauseni
Event action produce back to ToC or Class ToC
IRI: https://saref.etsi.org/saref4ener/EventActionProduce
An action type used to express a produce action to be performed as a consequence of an event used to send overload warning severity level and related load control commands to a device (e.g. a household appliance or a smart meter).
- has super-classes
- s4ener:LoadControlEventActionc
- has members
- s4ener:Emergencyni, s4ener:Reduceni, s4ener:Pauseni, s4ener:Resumeni, s4ener:Increaseni, s4ener:Normalni
Event state consume back to ToC or Class ToC
IRI: https://saref.etsi.org/saref4ener/EventStateConsume
In the load control, it expresses a consume state of an event used to send overload warning severity level and related load control commands to a device (e.g. a household appliance or a smart meter).
- has super-classes
- s4ener:LoadControlEventStatec
- has members
- s4ener:EventCancelledni, s4ener:EventErrorni, s4ener:EventStartedni, s4ener:EventAcceptedni, s4ener:EventRejectedni, s4ener:EventStoppedni
Event state produce back to ToC or Class ToC
IRI: https://saref.etsi.org/saref4ener/EventStateProduce
In the load control, it expresses a produce state of an event an event used to send overload warning severity level and related load control commands to a device (e.g. a household appliance or a smart meter).
- has super-classes
- s4ener:LoadControlEventStatec
- has members
- s4ener:EventCancelledni, s4ener:EventErrorni, s4ener:EventStartedni, s4ener:EventAcceptedni, s4ener:EventRejectedni, s4ener:EventStoppedni
Fill Rate Based Control Instruction back to ToC or Class ToC
IRI: https://saref.etsi.org/saref4ener/FRBCInstruction
A Fill Rate Based Instruction message.
- has super-classes
- s4ener:FlexibilityInstructionc
Failsafe Power Limit back to ToC or Class ToC
IRI: https://saref.etsi.org/saref4ener/FailsafePowerLimit
In case the communication between a device and the energy manager is interrupted, fail-safe values apply and the device enters fail-safe state until the communication is re-established.
- has super-classes
- s4ener:PowerLimitc
- is in domain of
- s4ener:hasFailsafeConsumptionMaxc
s4ener:hasFailsafeProductionMaxc - is in range of
- s4ener:isLimitedWithc
Fail-safe state back to ToC or Class ToC
IRI: https://saref.etsi.org/saref4ener/FailsafeState
State that indicates that the device currently is in its Fail-safe state. This means that it has lost its connection to a central energy manager. This may result in the device following stricter power limits.
- is in domain of
- s4ener:hasFailsafeDurationc
Fill level target profile back to ToC or Class ToC
IRI: https://saref.etsi.org/saref4ener/FillLevelTargetProfile
The target profile that a fill rate based control flexibility profile tries to follow.
- has super-classes
- owl:Thingc
- is in domain of
- s4ener:hasFillLevelTargetProfileElementc
- is in range of
- s4ener:hasFillLevelTargetProfilec
Fill level target profile element back to ToC or Class ToC
IRI: https://saref.etsi.org/saref4ener/FillLevelTargetProfileElement
A description of the various Elements detailing the Fill Level Target Profile consists.
- has super-classes
- owl:Thingc
- is in range of
- s4ener:hasFillLevelTargetProfileElementc
Fill rate control back to ToC or Class ToC
IRI: https://saref.etsi.org/saref4ener/FillRateProfile
A flexibility profile specified through a Fill Rate Based Profile.
- has super-classes
- s4ener:FlexibilityProfilec
- is in domain of
- s4ener:hasStoragec
Flex offer back to ToC or Class ToC
IRI: https://saref.etsi.org/saref4ener/FlexOffer
It allows to represent a flexibility offer (or schedule) as a combination of multiple time-series, data-points and forecasts. For example, we can create a flexibility offer that includes a time-series ex:T-power of power values, combined with a time-series ex:T-costs of associated costs.
- has super-classes
- s4ener:hasCreationTimedp max 1
s4ener:hasEffectivePeriodop max 1 time:Intervalc
s4ener:hasRecipientop only (foaf:Agentc or saref:Devicec)
s4ener:includesop only (s4ener:DataPointc or s4ener:TimeSeriesc or s4ener:FlexibilityProfilec)
s4ener:producedByop only (foaf:Agentc or saref:Devicec) - is in domain of
- s4ener:relatesToRequestc
- is in range of
- s4ener:relatesToOfferc
Flex request back to ToC or Class ToC
IRI: https://saref.etsi.org/saref4ener/FlexRequest
The flexibility request
- has super-classes
- owl:Thingc
s4ener:hasCreationTimedp only xsd:dateTime
s4ener:hasEffectivePeriodop only time:Intervalc
s4ener:hasRecipientop only (foaf:Agentc or saref:Devicec)
s4ener:includesop only (s4ener:DataPointc or s4ener:TimeSeriesc or s4ener:FlexibilityProfilec or s4ener:IncentiveTableProfilec)
s4ener:producedByop only (foaf:Agentc or saref:Devicec) - is in range of
- s4ener:relatesToRequestc
Flexibility Instruction back to ToC or Class ToC
IRI: https://saref.etsi.org/saref4ener/FlexibilityInstruction
The various types of instructions Flexibility Sources can send and/or receive.
Flexibility Profile back to ToC or Class ToC
IRI: https://saref.etsi.org/saref4ener/FlexibilityProfile
Different control types to describe the energy flexibility that a device has to offer. Charging of an EV for instance, may be controlled by power profile-based control or fill-rate -based control. It is not allowed to mix different control types at the same time, but different control types may be used sequentially.
Control Types dictates flexibility instructions. Control Type provides Flexibility options.
Gaussian data point back to ToC or Class ToC
IRI: https://saref.etsi.org/saref4ener/GaussianDataPoint
A data point whose quantity is a standard deviation.
- has super-classes
- s4ener:DataPointc
s4ener:hasStandardDeviationdp some xsd:decimal - is in domain of
- s4ener:hasStandardDeviationc
Incentive back to ToC or Class ToC
IRI: https://saref.etsi.org/saref4ener/Incentive
An Incentive indicates the intersection of a tier with a slot. In this particular combination of slot and tier there are a particular costs to draw this type of energy. For example, drawing power from the grid costs 0.30 euro per kilowatthour during the afternoon, but will only be activated from a lower boundary of 3000W.
- has super-classes
- s4ener:DataPointc
- is in domain of
- s4ener:hasLowerBoundaryc
s4ener:hasUpperBoundaryc - is in range of
- s4ener:hasIncentivec
Incentive table based profile back to ToC or Class ToC
IRI: https://saref.etsi.org/saref4ener/IncentiveTableProfile
This flexibility profile describes the usage of an incentive table to describe an incentive type in the form of costs (relative or absolute), CO2 emissions or renewable energy percentage that can be associated to power values (expressed as a time-series of power data-points).
- has super-classes
- s4ener:FlexibilityProfilec
s4ener:hasScopeTypeop only s4ener:ScopeTypec
s4ener:isChangeabledp only xsd:boolean
s4ener:requiresUpdatedp only xsd:boolean - is in domain of
- s4ener:hasPowerPlanc
s4ener:hasScopeTypec
s4ener:hasTierc
Incentive table slot back to ToC or Class ToC
IRI: https://saref.etsi.org/saref4ener/IncentiveTableSlot
This concept describes a slot that belongs to a Incentive Table. Each slot of the Incentive Table consists of a series of (lower) boundaries, each indicating the power at which a change to another incentive takes place. Additionally, each boundary is associated with a IncentiveTableTier.
- has super-classes
- s4ener:Slotc
Incentive table tier back to ToC or Class ToC
IRI: https://saref.etsi.org/saref4ener/IncentiveTableTier
This concept specifies a Tier that an Incentive Table consists of. Each Tier indicates through a series of Boundaries the price per kilowatthour this incentive costs. For example, a tier may describe grid power, solar panel power, or surplus power.
- has super-classes
- s4ener:TimeSeriesc
- is in domain of
- s4ener:hasIncentiveTypec
Incentive Type back to ToC or Class ToC
IRI: https://saref.etsi.org/saref4ener/IncentiveType
In the incentive table, an incentive type is defined in the form of costs (relative or absolute), CO2 emissions or renewable energy percentage.
- is in range of
- s4ener:hasIncentiveTypec
- has members
- s4ener:RelativeCostni, s4ener:AbsoluteCostni, s4ener:RenewableEnergyPercentageni, s4ener:CO2Emissionni
Instruction Status back to ToC or Class ToC
IRI: https://saref.etsi.org/saref4ener/InstructionStatus
The status an instruction has at a specific moment.
- has super-classes
- owl:Thingc
- is in range of
- s4ener:hasInstructionStatusc
- has members
- s4ener:Acceptedni, s4ener:Startedni, s4ener:Succeededni, s4ener:Newni, s4ener:Rejectedni, s4ener:Revokedni, s4ener:Abortedni
Interruption Instruction back to ToC or Class ToC
IRI: https://saref.etsi.org/saref4ener/InterruptionInstruction
An instruction indicating an interruption to the process.
- has super-classes
- s4ener:PPBCInstructionc
- has sub-classes
- s4ener:EndInterruptionInstructionc
s4ener:StartInterruptionInstructionc - is in domain of
- s4ener:hasInterruptionEndTimec
s4ener:hasInterruptionStartTimec
Leakage behaviour back to ToC or Class ToC
IRI: https://saref.etsi.org/saref4ener/LeakageBehaviour
A description of the Leakage Behaviour associated with this Fill Rate Flexibility Profile.
- has super-classes
- owl:Thingc
- is in domain of
- s4ener:hasLeakageBehaviourElementc
- is in range of
- s4ener:hasLeakageBehaviourc
Leakage behaviour element back to ToC or Class ToC
IRI: https://saref.etsi.org/saref4ener/LeakageBehaviourElement
An element detailing the leakage behaviour of a storage.
- has super-classes
- owl:Thingc
- is in domain of
- s4ener:leakageRatec
- is in range of
- s4ener:hasLeakageBehaviourElementc
Load Control event action back to ToC or Class ToC
IRI: https://saref.etsi.org/saref4ener/LoadControlEventAction
An action type used to express the action to be performed as a consequence of an event used to send overload warning severity level and related load control commands to a device (e.g. a household appliance or a smart meter).
- has sub-classes
- s4ener:EventActionConsumec
s4ener:EventActionProducec
Load control event data back to ToC or Class ToC
IRI: https://saref.etsi.org/saref4ener/LoadControlEventData
An event used to send overload warning severity level and related load control commands to a device (e.g. a household appliance or a smart meter).
- has super-classes
- saref:hasIdentifierdp min 0
saref:hasTimestampdp only xsd:dateTime
saref:hasTimestampdp min 1 xsd:dateTime
s4ener:hasDeviceop only s4ener:Devicec
s4ener:hasDeviceop min 1 s4ener:Devicec
s4ener:triggersEventActionConsumeop only s4ener:EventActionConsumec
s4ener:triggersEventActionConsumeop min 0 s4ener:EventActionConsumec
s4ener:triggersEventActionProduceop min 0 s4ener:EventActionProducec
s4ener:triggersEventActionProduceop only s4ener:EventActionProducec
Load control event state back to ToC or Class ToC
IRI: https://saref.etsi.org/saref4ener/LoadControlEventState
In the load control, it expresses the possible states of an event used to send overload warning severity level and related load control commands to a device (e.g. a household appliance or a smart meter).
- has super-classes
- saref:Statec
- has sub-classes
- s4ener:EventStateConsumec
s4ener:EventStateProducec
Load control state data back to ToC or Class ToC
IRI: https://saref.etsi.org/saref4ener/LoadControlStateData
The representation of the state of an event used to send overload warning severity level and related load control commands to a device (e.g. a household appliance or a smart meter).
- has super-classes
- saref:hasIdentifierdp min 0 xsd:unsignedInt
saref:hasTimestampdp only xsd:dateTime
saref:hasTimestampdp min 1 xsd:dateTime
s4ener:hasAppliedEventActionConsumeop min 0 s4ener:EventActionConsumec
s4ener:hasAppliedEventActionConsumeop only s4ener:EventActionConsumec
s4ener:hasAppliedEventActionProduceop only s4ener:EventActionProducec
s4ener:hasAppliedEventActionProduceop min 0 s4ener:EventActionProducec
s4ener:hasEventStateConsumeop min 0 s4ener:EventStateConsumec
s4ener:hasEventStateConsumeop only s4ener:EventStateConsumec
s4ener:hasEventStateProduceop only s4ener:EventStateProducec
s4ener:hasEventStateProduceop min 0 s4ener:EventStateProducec
Nominal Power Limit back to ToC or Class ToC
IRI: https://saref.etsi.org/saref4ener/NominalPowerLimit
A device may have nominal power consumption and/or production values that are defined by the manufacturer and must not be exceeded, so that the power limit must stay within these constraints.
- has super-classes
- s4ener:PowerLimitc
- is in domain of
- s4ener:hasNominalConsumptionc
s4ener:hasNominalProductionc - is in range of
- s4ener:isProtectedByc
Number range back to ToC or Class ToC
IRI: https://saref.etsi.org/saref4ener/NumberRange
This class describes a range via a datatype property indicating the start of the range and another datatype property indicating the end of the range.
- has super-classes
- owl:Thingc
- is in domain of
- s4ener:endOfRangec
s4ener:startOfRangec - is in range of
- s4ener:fillRatec
s4ener:hasDemandRatec
s4ener:hasFillLevelRangec
s4ener:hasNumberRangec
s4ener:hasRunningCostsc
s4ener:hasSupplyRangec
s4ener:rangeBoundaryc
Operation Mode Based Control Instruction back to ToC or Class ToC
IRI: https://saref.etsi.org/saref4ener/OMBCInstruction
An instruction following the Operation Mode Based Profile.
- has super-classes
- s4ener:FlexibilityInstructionc
Operation Mode back to ToC or Class ToC
IRI: https://saref.etsi.org/saref4ener/OperationMode
A resource manager can declare multiple operation modes for a device. An operation mode is a mode/state that a device can find itself in, that is associated with a specific power value.
- has super-classes
- saref:Statec
- is in domain of
- s4ener:hasCostc
s4ener:hasOperationModeElementc
s4ener:hasSupplyRangec - is in range of
- s4ener:fromOperationModec
s4ener:hasActiveOperationModec
s4ener:hasOperationModec
s4ener:hasPreviousOperationModec
s4ener:toOperationModec
Operation Mode Element back to ToC or Class ToC
IRI: https://saref.etsi.org/saref4ener/OperationModeElement
Operation Mode Elements of a Fill Rate Based Control
- has super-classes
- owl:Thingc
- is in domain of
- s4ener:hasRunningCostsc
- is in range of
- s4ener:hasOperationModeElementc
Operation mode control back to ToC or Class ToC
IRI: https://saref.etsi.org/saref4ener/OperationModeProfile
A resource manager can declare multiple operation modes for a device. An operation mode is a mode/state that a device can find itself in, that is associated with a specific power value.
- has super-classes
- s4ener:FlexibilityProfilec
Power Envelop Based Control Instruction back to ToC or Class ToC
IRI: https://saref.etsi.org/saref4ener/PEBCInstruction
An instruction for the Power Envelope Based Profile.
- has super-classes
- s4ener:FlexibilityInstructionc
Power Profile Based Control Instruction back to ToC or Class ToC
IRI: https://saref.etsi.org/saref4ener/PPBCInstruction
An instruction for a Power Profile Based Flexibility Profile.
- has super-classes
- s4ener:FlexibilityInstructionc
- has sub-classes
- s4ener:InterruptionInstructionc
s4ener:ScheduleInstructionc - is in domain of
- s4ener:relatesToPowerProfilec
s4ener:relatesToPowerProfileSequencec
s4ener:relatesToPowerProfileSequenceContainerc
Power constraint back to ToC or Class ToC
IRI: https://saref.etsi.org/saref4ener/PowerConstraint
The actual power constraint contained in the Allowed Limit Range or Power limit.
- has super-classes
- owl:Thingc
- is in domain of
- s4ener:hasConsequenceTypec
Power Envelope back to ToC or Class ToC
IRI: https://saref.etsi.org/saref4ener/PowerEnvelope
A specific Power Envelope to be followed by an energy manager
- has super-classes
- owl:Thingc
- is in domain of
- s4ener:hasEnvelopec
- is in range of
- s4ener:hasPowerEnvelopec
s4ener:hasPowerEnvelopeElementc
Power Envelope Consequence Type back to ToC or Class ToC
IRI: https://saref.etsi.org/saref4ener/PowerEnvelopeConsequenceType
The type of consequence of limiting power, which can be Defer or Vanish.
- has super-classes
- owl:Thingc
- is in range of
- s4ener:hasConsequenceTypec
- has members
- s4ener:Deferni, s4ener:Vanishni
Power Envelope Limit Type back to ToC or Class ToC
IRI: https://saref.etsi.org/saref4ener/PowerEnvelopeLimitType
An enumeration containing the codelist for Power Envelope Limit Types, which may be Lower limit or Upper limit.
- has super-classes
- owl:Thingc
- is in range of
- s4ener:limitTypec
- has members
- s4ener:UpperLimitni, s4ener:LowerLimitni
Power envelope control back to ToC or Class ToC
IRI: https://saref.etsi.org/saref4ener/PowerEnvelopeProfile
A Flexibility Profile described through a Power Envelope Profile.
- has super-classes
- s4ener:FlexibilityProfilec
- is in domain of
- s4ener:hasPowerEnvelopeElementc
Power Limit back to ToC or Class ToC
IRI: https://saref.etsi.org/saref4ener/PowerLimit
A power limit is defined as the maximum value for power consumption and/or production that must not be exceeded by e.g. a (group of) device(s), a building, or also a district.
- has super-classes
- s4ener:AllowedLimitRangec
s4ener:isChangeabledp only xsd:boolean
s4ener:isObligatorydp only xsd:boolean - has sub-classes
- s4ener:ContractualPowerLimitc
s4ener:FailsafePowerLimitc
s4ener:NominalPowerLimitc - is in domain of
- s4ener:hasPowerLimitConsumptionMaxc
s4ener:hasPowerLimitDurationc
s4ener:hasPowerLimitProductionMaxc
s4ener:hasPowerLimitStatec
s4ener:isActivec
s4ener:isObligatoryc - is in range of
- s4ener:receivesPowerLimitc
Power limit profile back to ToC or Class ToC
IRI: https://saref.etsi.org/saref4ener/PowerLimitProfile
This profile describes the energy flexibility of a device via a set of power limits, following the SPINE documentation
- has super-classes
- s4ener:FlexibilityProfilec
- is in domain of
- s4ener:isBoundToc
s4ener:isLimitedWithc
s4ener:isProtectedByc
s4ener:receivesPowerLimitc
Power plan back to ToC or Class ToC
IRI: https://saref.etsi.org/saref4ener/PowerPlan
The Power Plan that an energy manager creates for a device. It contains three timeseries indicating the minimum, average, and maximum respectively.
- has super-classes
- s4ener:TimeSeriesc
saref:consistsOfop some s4ener:TimeSeriesc - is in domain of
- s4ener:isWritablec
- is in range of
- s4ener:hasPowerPlanc
Power profile control back to ToC or Class ToC
IRI: https://saref.etsi.org/saref4ener/PowerProfile
A way to model curves of power and energy over time, which also provides definitions for the modelling of power scheduling including alternative plans. With a PowerProfile, a device (or power sequences server) exposes the power sequences that are potentially relevant for the CEM (or power sequences client).
PPBC.PowerProfileDefinition
- has super-classes
- saref:Profilec
saref:consistsOfop only s4ener:AlternativesGroupc
saref:consistsOfop some s4ener:AlternativesGroupc
s4ener:belongsToop only s4ener:Devicec
s4ener:belongsToop exactly 1 s4ener:Devicec
s4ener:nodeRemoteControllabledp exactly 1
s4ener:supportsReselectiondp exactly 1
s4ener:supportsSingleSlotSchedulingOnlydp exactly 1
s4ener:totalSequencesCountMaxdp exactly 1 - is in domain of
- s4ener:hasPowerSequenceContainerc
- is in range of
- s4ener:relatesToPowerProfilec
Power range back to ToC or Class ToC
IRI: https://saref.etsi.org/saref4ener/PowerRange
A class describing a power range, containing a start of range, an end of range, and a saref:Property indicating the type of power involved.
- has super-classes
- owl:Thingc
- is in domain of
- s4ener:hasNumberRangec
- is in range of
- s4ener:hasPowerRangec
Power sequence back to ToC or Class ToC
IRI: https://saref.etsi.org/saref4ener/PowerSequence
The specification of a task, such as wash or tumble dry, according to user preferences and/or manufacturer's settings for a certain device. It is the most 'coarse' view, a power sequence can represent all single steps of a whole task,where the single steps are represented by slots. If the power sequence is pausable by the bound power sequences client, the property 'saref:isInterrupteble' SHALL be present and set to true. Otherwise it SHALL be omitted. If the power sequence is stoppable by the bound power sequences client, the property 'saref:isFlexible' SHALL be present and set to true. Otherwise it SHALL be omitted.
A Power Sequence following S2 is a container containing one or more PowerSequenceElements among which the EMS can choose the Element with the best fit to the current energy demands.
- has super-classes
- owl:Thingc
saref:consistsOfop only s4ener:Slotc
saref:consistsOfop some s4ener:Slotc
saref:hasIdentifierdp exactly 1
saref:hasStateop only s4ener:PowerSequenceStatec
s4ener:activeRepetitionNumberdp max 1
s4ener:activeSlotNumberdp max 1
s4ener:belongsToop exactly 1 s4ener:AlternativesGroupc
s4ener:belongsToop only s4ener:AlternativesGroupc
s4ener:cheapestdp max 1
s4ener:greenestdp max 1
s4ener:hasActiveDurationMaxdp min 1
s4ener:hasActiveDurationMindp min 1
s4ener:hasActiveDurationSumMaxdp max 1
s4ener:hasActiveDurationSumMindp max 1
s4ener:hasEarliestStartTimedp max 1
s4ener:hasElapsedSlotTimeop max 1
s4ener:hasEndTimedp max 1
s4ener:hasLatestEndTimedp max 1
s4ener:hasPauseDurationMaxdp max 1
s4ener:hasPauseDurationMindp max 1
s4ener:hasRemainingSlotTimedp max 1
s4ener:hasResumeCostEstimatedop max 1 saref:PropertyValuec
s4ener:hasResumeCostEstimatedop only saref:PropertyValuec
s4ener:hasResumeEnergyEstimatedop max 1 saref:PropertyValuec
s4ener:hasResumeEnergyEstimatedop only saref:PropertyValuec
s4ener:hasStartTimedp min 1
s4ener:hasValueSourceop min 0
s4ener:isPausabledp max 1
s4ener:isStoppabledp max 1
s4ener:maxCyclesPerDaydp max 1
s4ener:repetitionsTotaldp max 1
s4ener:sequenceRemoteControllabledp exactly 1 - is in domain of
- s4ener:hasMaxDurationc
s4ener:hasMaxPauseBeforec
s4ener:hasMinDurationc
s4ener:hasPauseDurationMaxc
s4ener:hasPauseDurationMinc
s4ener:hasPowerSequenceElementc
s4ener:hasTaskIdentifierc
s4ener:isInterruptiblec - is in range of
- s4ener:hasPowerSequencec
s4ener:relatesToPowerProfileSequencec
Power profile container back to ToC or Class ToC
IRI: https://saref.etsi.org/saref4ener/PowerSequenceContainer
A container containing the various Power Sequences among which the EMS may choose for the appropriate Power Sequence at a given time.
- has super-classes
- owl:Thingc
- is in domain of
- s4ener:hasPowerSequencec
s4ener:hasPowerSequenceStatusc
s4ener:progressc - is in range of
- s4ener:hasPowerSequenceContainerc
s4ener:relatesToPowerProfileSequenceContainerc
Power sequence element back to ToC or Class ToC
IRI: https://saref.etsi.org/saref4ener/PowerSequenceElement
An element of a power sequence, roughly equivalent to slots in the existing S4ener.
- has super-classes
- owl:Thingc
- is in range of
- s4ener:hasPowerSequenceElementc
Power sequence state back to ToC or Class ToC
IRI: https://saref.etsi.org/saref4ener/PowerSequenceState
The current state of the power sequence. It can assume one of the values 'running', 'paused', 'scheduled', 'scheduled paused', 'pending', 'inactive', 'completed', or 'invalid'.
- has super-classes
- saref:Statec
- has members
- s4ener:Pendingni, s4ener:Runningni, s4ener:Completedni, s4ener:Scheduledni, s4ener:Invalidni, s4ener:ScheduledPausedni, s4ener:Pausedni, s4ener:Inactiveni
Power sequence status back to ToC or Class ToC
IRI: https://saref.etsi.org/saref4ener/PowerSequenceStatus
A codelist for the various Power Sequence statuses.
- has super-classes
- owl:Thingc
- is in range of
- s4ener:hasPowerSequenceStatusc
- has members
- s4ener:NotScheduledni, s4ener:Interruptedni, s4ener:Finishedni, s4ener:Abortedni, s4ener:Executingni
Power source back to ToC or Class ToC
IRI: https://saref.etsi.org/saref4ener/PowerSource
Indicates the power source of a device. Possible values are e.g. mainsSinglePhase or battery
- has super-classes
- owl:Thingc
- is in range of
- s4ener:hasPowerSourcec
- has members
- s4ener:MainsSinglePhaseni, s4ener:Mains3Phaseni, s4ener:BatteryPowerSourceni, s4ener:DCPowerSourceni
Role back to ToC or Class ToC
IRI: https://saref.etsi.org/saref4ener/Role
A codelist containing the various roles a device can take: producer, consumer, and storage.
- has super-classes
- owl:Thingc
- is in domain of
- s4ener:hasCommodityc
s4ener:hasRoleTypec - is in range of
- s4ener:hasRolec
Role Type back to ToC or Class ToC
IRI: https://saref.etsi.org/saref4ener/RoleType
An enumeration containing the various roles a device can take up: consumer, producer, or storage.
- is in range of
- s4ener:hasRoleTypec
- has members
- s4ener:EnergyStorageni, s4ener:EnergyProducerni, s4ener:EnergyConsumerni
Schedule Instruction back to ToC or Class ToC
IRI: https://saref.etsi.org/saref4ener/ScheduleInstruction
Schedule instruction for a power profile flexibility profile.
- has super-classes
- s4ener:PPBCInstructionc
Scope Type back to ToC or Class ToC
IRI: https://saref.etsi.org/saref4ener/ScopeType
An incentive table may additionally define a scope type to indicate whether it is a preliminary or committed version.
- is in range of
- s4ener:hasScopeTypec
- has members
- s4ener:Preliminaryni, s4ener:Committedni
Slot back to ToC or Class ToC
IRI: https://saref.etsi.org/saref4ener/Slot
The single steps of a power sequence are represented by slots. A slot is associated with a slot number (while a power sequence is associated with a power sequence identifier). The slot numbers of two power sequences should be considered independent from each other, i.e., slot number 7 of sequence 1 describes a different slot than slot number 7 of sequence 2. Therefore a slot is only uniquely identified in combination with a sequence ID.
- has super-classes
- s4ener:belongsToop only s4ener:PowerSequencec
s4ener:belongsToop exactly 1 s4ener:PowerSequencec
s4ener:hasDefaultDurationdp max 1
s4ener:hasDurationUncertaintydp max 1
s4ener:hasEarliestStartTimedp max 1
s4ener:hasEndTimedp max 1
s4ener:hasLatestEndTimedp max 1
s4ener:hasMaxDurationdp max 1
s4ener:hasMinDurationdp max 1
s4ener:hasRemainingPauseTimedp max 1
s4ener:hasStartTimedp max 1
s4ener:hasUsageop min 1 s4ener:Usagec
s4ener:hasUsageop only s4ener:Usagec
s4ener:optionalSlotdp max 1
s4ener:slotActivateddp max 1
s4ener:slotNumberdp exactly 1 - has sub-classes
- s4ener:IncentiveTableSlotc
- is in domain of
- s4ener:hasSlotValuec
Start Interruption Instruction back to ToC or Class ToC
IRI: https://saref.etsi.org/saref4ener/StartInterruptionInstruction
An instruction or message indicating the start of an interruption.
- has super-classes
- s4ener:InterruptionInstructionc
Storage back to ToC or Class ToC
IRI: https://saref.etsi.org/saref4ener/Storage
storage device which is the main component of Fill Rate Based Control type.). In the context of flexibility control and instructuons, a device shall be able to inform the CEM about its fill level, a measure of how full the storage is, and the lower and upper boundaries that the fill level should remain within.
- has super-classes
- owl:Thingc
s4ener:Devicec - is in domain of
- s4ener:hasFillLevelTargetProfilec
s4ener:hasLeakageBehaviourc
s4ener:presentFillLevelc - is in range of
- s4ener:hasStoragec
Time Series back to ToC or Class ToC
IRI: https://saref.etsi.org/saref4ener/TimeSeries
An ordered sequence of data points of a quantity observed at spaced time intervals is referred to as a time series. Time series can be a result of prediction algorithm.
- has super-classes
- s4ener:hasCreationTimedp max 1
s4ener:hasDataPointop min 0 s4ener:DataPointc
s4ener:hasEffectivePeriodop only time:Intervalc
s4ener:hasTemporalResolutiondp max 1
s4ener:hasUpdateRatedp max 1
s4ener:hasUsageop only s4ener:Usagec - has sub-classes
- s4ener:IncentiveTableTierc
s4ener:PowerPlanc - is in domain of
- s4ener:hasDataPointc
- is in range of
- s4ener:belongsToTimeSeriesc
s4ener:hasDemandRateForecastc
s4ener:hasEnvelopec
s4ener:hasUsageForecastc
Timer back to ToC or Class ToC
IRI: https://saref.etsi.org/saref4ener/Timer
A timer for time-based operation mode and transition constraints.
- has super-classes
- owl:Thingc
- is in domain of
- s4ener:isFinishedAtc
- is in range of
- s4ener:hasTimerc
s4ener:isBlockedByc
s4ener:startsTimerc
Transition back to ToC or Class ToC
IRI: https://saref.etsi.org/saref4ener/Transition
Possible transitions to switch from one Operation Mode to another or to set new parameters.
- has super-classes
- owl:Thingc
- is in domain of
- s4ener:fromOperationModec
s4ener:hasTransitionCostsc
s4ener:hasTransitionDurationc
s4ener:isBlockedByc
s4ener:startsTimerc
s4ener:toOperationModec - is in range of
- s4ener:hasTransitionc
Usage back to ToC or Class ToC
IRI: https://saref.etsi.org/saref4ener/Usage
The usage of a datapoint, time series or message.
- is in range of
- s4ener:hasUsagec
- has members
- s4ener:SetPointni, s4ener:LowerLimitni, s4ener:Productionni, s4ener:Downflexni, s4ener:Minimumni, s4ener:Skewnessni, s4ener:BaseLineni, s4ener:Maximumni, s4ener:UpperLimitni, s4ener:Averageni, s4ener:Consumptionni, s4ener:Upflexni
Value source back to ToC or Class ToC
IRI: https://saref.etsi.org/saref4ener/ValueSource
Indicates the source (origin/foundation) of the observation forecasted values for a power sequence. If absent, the source is undefined. Remark: This element shall express the reliability of the forecast.
- has super-classes
- owl:Thingc
- is in range of
- s4ener:hasValueSourcec
- has members
- s4ener:Measuredni, s4ener:Calculatedni, s4ener:Empiricalni
Value tendency back to ToC or Class ToC
IRI: https://saref.etsi.org/saref4ener/ValueTendency
This type indicates a codelist for the s4ener:valueTendency property about whether the tendency of an observation is rising, stable or falling.
- has super-classes
- owl:Thingc
- is in range of
- s4ener:valueTendencyc
- has members
- s4ener:Fallingni, s4ener:Stableni, s4ener:Risingni
Object Properties
- allowed limit range
- belongs to
- belongs to time series
- end of range
- Fill Rate Level
- from operation mode
- has active operation mode
- has applied event action consume
- has applied event action produce
- Uses commodity
- Has Consequence Type
- has constraints
- has contractual consumption Max
- has contractual production Max
- has cost, aka hasCost
- has data point
- has demand rate
- has average demand rate forecast
- has device
- has effective period
- has elapsed slot time
- has energy
- has envelope
- has event state consume
- has event state produce
- has failsafe consumption max
- has failsafe production max
- Fill Level Range
- has fill level target profile
- has fill level target profile element
- has incentive
- has incentive type
- has Instruction Status
- has leakage behaviour
- has leakage behaviour element
- has lower boundary
- has nominal consumption Max
- has nominal production Max
- has number range
- has Operation Modes
- Has Operation Mode Element
- has power envelope
- has power envelope element
- has power limit consumption Max
- has power limit production Max
- has power limit state
- has power plan
- has power ranges
- has power sequence
- has power sequence container
- has power sequence element
- has power sequence status
- Power source
- has previous operation mode
- has recipient
- Resume cost estimated
- Resume energy estimated
- performs role
- role type
- has running costs
- has scope type
- has slot value
- has storage
- Has Supply Range
- has tier incentive
- Has Timer
- has transition
- has upper boundary
- has usage
- Has Usage Forecast
- has value source
- includes
- is actuated by
- is blocked by
- is bound to
- is limited with
- is protected by
- Leakage Rate
- Limit Type
- present fill level
- produced by
- range boundary
- receives
- receives power limit
- relates to commodity quantity
- relates to offer
- Relates to power profile
- Relates to power profile sequence
- Relates to power profile sequence container
- relates to request
- start of range
- Starts Timer
- to state operation mode
- triggers event action consume
- triggers event action produce
- value tendency
allowed limit range back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/allowedLimitRange
This property indicates the various AllowedLimitRanges or PowerLimits that this PowerConstraint object consists of.
- has domain
- s4ener:PowerConstraintc or s4ener:EnergyConstraintc
- has range
- s4ener:AllowedLimitRangec
belongs to back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/belongsTo
A relationship identifying the ownership of an entity. In particular, a slot belongs to a power sequence, a power sequence belongs to an alternative, an alternative belongs to a power profile, a power profile belongs to a device.
belongs to time series back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/belongsToTimeSeries
The relationship that connects a data point to a time series.
- has domain
- s4ener:DataPointc
- has range
- s4ener:TimeSeriesc
- is inverse of
- s4ener:hasDataPointop
end of range back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/endOfRange
This property indicates the end of a number range.
- has domain
- s4ener:NumberRangec
- has range
- saref:PropertyValuec
Fill Rate Level back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/fillRate
Indicates the change in fill_level per second. The lower_boundary of the NumberRange is associated with an operation_mode_factor of 0, the upper_boundary is associated with an operation_mode_factor of 1.
- has domain
- s4ener:Storagec or s4ener:OperationModeElementc
- has range
- s4ener:NumberRangec
from operation mode back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/fromOperationMode
ID of the OperationMode (exact type differs per ControlType) that should be switched from.
- has domain
- s4ener:Transitionc
- has range
- s4ener:OperationModec
has active operation mode back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/hasActiveOperationMode
A reference to the OperationMode that is presently active
- has domain
- s4ener:OperationModec or saref:Actuatorc
- has range
- s4ener:OperationModec
has applied event action consume back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/hasAppliedEventActionConsume
A relationship between the state of a load control event consume and the action to be performed as a consequence of this event.
has applied event action produce back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/hasAppliedEventActionProduce
A relationship between the state of a load control event produce and the action to be performed as a consequence of this event.
Uses commodity back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/hasCommodity
An indication of which commodity this Role is a consumer, producer, or storer of.
- has domain
- s4ener:Rolec
- has range
- saref:Commodityc
Has Consequence Type back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/hasConsequenceType
The consequence type associated with this Power Constraint, which can be Defer or Vanish.
- has domain
- s4ener:PowerConstraintc
- has range
- s4ener:PowerEnvelopeConsequenceTypec
has constraints back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/hasConstraints
This property relates a Power Envelop Instruction or Profile to the constraints it needs to follow. There are two types of constraints modelled: Power constraints and energy constraints.
- has domain
- s4ener:PEBCInstructionc or s4ener:PowerEnvelopeProfilec
- has range
- s4ener:PowerConstraintc or s4ener:EnergyConstraintc
has contractual consumption Max back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/hasContractualConsumptionMax
The relationship between the contractual power limit and the value indicating the max limit consumption.
- has super-properties
- s4ener:hasPowerLimitConsumptionMaxop
- has domain
- s4ener:ContractualPowerLimitc
- has range
- saref:PropertyValuec
has contractual production Max back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/hasContractualProductionMax
The relationship between the contractual power limit and the value indicating the max limit production.
- has super-properties
- s4ener:hasPowerLimitProductionMaxop
- has domain
- s4ener:ContractualPowerLimitc
- has range
- saref:PropertyValuec
has cost, aka hasCost back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/hasCost
Additional costs per second (e.g. wear, services) associated with this operation mode in the currency defined by the ResourceManagerDetails , excluding the commodity cost. The range is expressing uncertainty and is not linked to the operation_mode_factor.
The relationship between the s4ener:FlexibilityInstruction and s4ener:DataPoint
- has domain
- s4ener:FlexibilityInstructionc
s4ener:OperationModec - has range
- s4ener:DataPointc
has data point back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/hasDataPoint
This relationship connects a time series to data point.
- has domain
- s4ener:TimeSeriesc
- has range
- s4ener:DataPointc
- is inverse of
- s4ener:belongsToTimeSeriesop
has demand rate back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/hasDemandRate
The present demand rate that needs to be satisfied by the system
- has domain
- s4ener:DemandDrivenProfilec
- has range
- s4ener:NumberRangec
has average demand rate forecast back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/hasDemandRateForecast
This property relates a Demand Driven Profile to a TimeSeries object that indicates a forecast of the average demand rate.
- has domain
- s4ener:DemandDrivenProfilec
- has range
- s4ener:TimeSeriesc
has device back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/hasDevice
A relationship between a load control event (used to send overload warning severity level and related load control commands) and the device interested by this event.
has effective period back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/hasEffectivePeriod
This connects to the temporal entity which describes when (time interval) the quantity of this data point was, is, or will be in effect. This is the time interval which is covered by the forecast.
This should be equivalent to the time interval covered by the time-series that express the forecast.
- has range
- time:Intervalc
has elapsed slot time back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/hasElapsedSlotTime
If state is set to 'running' or 'paused' AND the slot is determined, this property CAN contain the time the slot has already been in 'running' state (this also means the value remains constant during a 'paused' state). Otherwise it SHALL be omitted.
- has range
- time:TemporalEntityc
has energy back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/hasEnergy
A relationship between a power sequence and its energy (in terms of value and unit of measure)
- has range
- saref:PropertyValuec
has envelope back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/hasEnvelope
This property relates a Power Envelope to the Timeseries object that describes the envelope
- has domain
- s4ener:PowerEnvelopec
- has range
- s4ener:TimeSeriesc
has event state consume back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/hasEventStateConsume
A relationship between the specification of the state of a load control event consume and the value that this state can assume.
- has super-properties
- saref:hasStateop
has event state produce back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/hasEventStateProduce
A relationship between the specification of the state of a load control event produce and the value that this state can assume.
- has super-properties
- saref:hasStateop
has failsafe consumption max back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/hasFailsafeConsumptionMax
The relationship between the failsafe power limit and the value indicating its consumption.
- has super-properties
- s4ener:hasPowerLimitConsumptionMaxop
- has domain
- s4ener:FailsafePowerLimitc
- has range
- saref:PropertyValuec
has failsafe production max back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/hasFailsafeProductionMax
The relationship between the failsafe power limit and the value indicating its production.
- has super-properties
- s4ener:hasPowerLimitProductionMaxop
- has domain
- s4ener:FailsafePowerLimitc
- has range
- saref:PropertyValuec
Fill Level Range back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/hasFillLevelRange
The range of the fill level for which this FRBC.OperationModeElement applies.
If this concept is applied on a Storage it indicated the range in which a storage should remain.
- has domain
- s4ener:Storagec or s4ener:OperationModeElementc or s4ener:LeakageBehaviourElementc or s4ener:FillLevelTargetProfileElementc
- has range
- s4ener:NumberRangec
has fill level target profile back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/hasFillLevelTargetProfile
The Fill Level Target Profile of the storage that the current Fill Rate Profile tries to accomodate for.
NB. This cannot be modelled as a TimeSeries, since the x-axis is not time.
- has domain
- s4ener:Storagec
- has range
- s4ener:FillLevelTargetProfilec
has fill level target profile element back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/hasFillLevelTargetProfileElement
The various Fill Level Target Profile Elements detailing the Fill Level Target Profile that the current Fill Level Based Profile tries to accomodate for.
- has domain
- s4ener:FillLevelTargetProfilec
- has range
- s4ener:FillLevelTargetProfileElementc
has incentive back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/hasIncentive
This property relates an IncentiveTable element, such as an IncentiveTableSlot or an IncentiveTableTier to the boundaries that it consists of.
- has domain
- s4ener:IncentiveTableSlotc or s4ener:IncentiveTableTierc
- has range
- s4ener:Incentivec
has incentive type back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/hasIncentiveType
The relationship between the tier and its incentive type
- has domain
- s4ener:IncentiveTableTierc
- has range
- s4ener:IncentiveTypec
has Instruction Status back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/hasInstructionStatus
Present status of this instruction.
- has range
- s4ener:InstructionStatusc
has leakage behaviour back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/hasLeakageBehaviour
The Leakage Behaviour associated with this storage.
- has domain
- s4ener:Storagec
- has range
- s4ener:LeakageBehaviourc
has leakage behaviour element back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/hasLeakageBehaviourElement
This property relates the LeakageBehaviour description to the LeakageBehaviourElements indicating the detailed description.
- has domain
- s4ener:LeakageBehaviourc
- has range
- s4ener:LeakageBehaviourElementc
has lower boundary back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/hasLowerBoundary
This property relates an IncentiveTableBoundary to the datapoint describing its lower boundary or starting point at which this boundary becomes active.
- has domain
- s4ener:Incentivec
- has range
- s4ener:DataPointc
has nominal consumption Max back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/hasNominalConsumption
The relationship between the nominal power limit and the value indicating the max limit consumption.
- has super-properties
- s4ener:hasPowerLimitConsumptionMaxop
- has domain
- s4ener:NominalPowerLimitc
- has range
- saref:PropertyValuec
has nominal production Max back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/hasNominalProduction
The relationship between the nominal power limit and the value indicating the max limit production.
- has super-properties
- s4ener:hasPowerLimitProductionMaxop
- has domain
- s4ener:NominalPowerLimitc
- has range
- saref:PropertyValuec
has number range back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/hasNumberRange
This property provides the association between a power range and its number range.
- has domain
- s4ener:PowerRangec
- has range
- s4ener:NumberRangec
has Operation Modes back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/hasOperationMode
This property indicates the s4ener:OperationMode inidicated by this Actuator, Instruction, or OperationModeProfile.
The SAREF4ENER extension expects the following classes to be used as domain:
- saref:Actuator
- s4ener:FRBCInstruction
- s4ener:DDBCInstruction
- s4ener:OMBCInstruction
- s4ener:OperationModeProfile
- has range
- s4ener:OperationModec
Has Operation Mode Element back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/hasOperationModeElement
List of OperationModeElements, which describe the properties of this FRBC.OperationMode depending on the fill_level. The fill_level_ranges of the items in the Array must be contiguous.
- has domain
- s4ener:OperationModec
- has range
- s4ener:OperationModeElementc
has power envelope back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/hasPowerEnvelope
The PEBC.PowerEnvelope(s) that should be followed by the Resource Manager. There shall be at least one PEBC.PowerEnvelope, but at most one PEBC.PowerEnvelope for each Commodity.
- has domain
- s4ener:PEBCInstructionc or s4ener:PowerEnvelopeProfilec
- has range
- s4ener:PowerEnvelopec
has power envelope element back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/hasPowerEnvelopeElement
This property relates a PowerEnvelopeProfile to the various specific PowerEnvelops contained in the profile.
- has domain
- s4ener:PowerEnvelopeProfilec
- has range
- s4ener:PowerEnvelopec
has power limit consumption Max back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/hasPowerLimitConsumptionMax
The relationship between the power limit and the value indicating the max limit consumption.
- has sub-properties
- s4ener:hasNominalConsumptionop
s4ener:hasContractualConsumptionMaxop
s4ener:hasFailsafeConsumptionMaxop - has domain
- s4ener:PowerLimitc
- has range
- saref:PropertyValuec
has power limit production Max back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/hasPowerLimitProductionMax
The relationship between the power limit and the value indicating the max limit production.
- has sub-properties
- s4ener:hasNominalProductionop
s4ener:hasFailsafeProductionMaxop
s4ener:hasContractualProductionMaxop - has domain
- s4ener:PowerLimitc
- has range
- saref:PropertyValuec
has power limit state back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/hasPowerLimitState
The relationship between the power limit state and its state (active/ inactive).
- has domain
- s4ener:PowerLimitc
has power plan back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/hasPowerPlan
A reference to a power plan indicating the preliminary or committed usage of the energy smart device for a specific period.
- has domain
- s4ener:IncentiveTableProfilec
- has range
- s4ener:PowerPlanc
has power ranges back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/hasPowerRange
The power produced or consumed by this operation mode. The start of each PowerRange is associated with an operation_mode_factor of 0, the end is associated with an operation_mode_factor of 1. In the array there must be at least one PowerRange, and at most one PowerRange per Commodity.
- has domain
- s4ener:OperationModec or s4ener:OperationModeElementc
- has range
- s4ener:PowerRangec
has power sequence back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/hasPowerSequence
The various Sequences contained in a Power Sequence Container among which the EMS can choose the proper PowerSequence for the current energy demands.
- has domain
- s4ener:PowerSequenceContainerc
- has range
- s4ener:PowerSequencec
has power sequence container back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/hasPowerSequenceContainer
The various power sequence containers contained within an S2 Power Profile. The containers have to executed one after the other. Each container contains various Power Sequence anong which the EMS can choose the appropriate Power Sequence for the current energy demands.
- has domain
- s4ener:PowerProfilec
- has range
- s4ener:PowerSequenceContainerc
has power sequence element back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/hasPowerSequenceElement
A connection between the Power Sequence and the elements (or Slots) describing the exact contents.
- has domain
- s4ener:PowerSequencec
- has range
- s4ener:PowerSequenceElementc
has power sequence status back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/hasPowerSequenceStatus
This property indicates the current status of this Power Sequence.
- has domain
- s4ener:PowerSequenceContainerc
- has range
- s4ener:PowerSequenceStatusc
Power source back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/hasPowerSource
Indicates the power source of a device. Possible values are e.g. mainsSinglePhase or battery
- has range
- s4ener:PowerSourcec
has previous operation mode back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/hasPreviousOperationMode
The previous operation mode this device was in
- has domain
- saref:Actuatorc or s4ener:OperationModec
- has range
- s4ener:OperationModec
has recipient back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/hasRecipient
This property can be used to connect a flexibility offer or/and flexibility request to a foaf:agent or saref:Device.
Resume cost estimated back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/hasResumeCostEstimated
In a power sequence the additional costs for the resumption of a device to its normal operation (after a pause).
- has super-properties
- saref:hasPropertyValueop
Resume energy estimated back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/hasResumeEnergyEstimated
In a power sequence the additional energy for the resumption of a device to its normal operation (after a pause).
- has super-properties
- saref:hasPropertyValueop
performs role back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/hasRole
Each Resource Manager provides one or more energy Roles
- has domain
- s4ener:Devicec
- has range
- s4ener:Rolec
role type back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/hasRoleType
The type of this specific role
- has domain
- s4ener:Rolec
- has range
- s4ener:RoleTypec
has running costs back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/hasRunningCosts
Additional costs per second (e.g. wear, services) associated with this operation mode in the currency defined by the ResourceManagerDetails , excluding the commodity cost. The range is expressing uncertainty and is not linked to the operation_mode_factor.
- has domain
- s4ener:OperationModeElementc
- has range
- s4ener:NumberRangec
has scope type back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/hasScopeType
The relationship between the incentive table and the scope type
- has domain
- s4ener:IncentiveTableProfilec
- has range
- s4ener:ScopeTypec
has slot value back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/hasSlotValue
This property is intended to specify the power or energy value of a slot in a power sequence as part of a power profile.
- has domain
- s4ener:Slotc
- has range
- saref:PropertyValuec
has storage back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/hasStorage
The storage regulated by the related Fill Rate Profile.
- has domain
- s4ener:FillRateProfilec
- has range
- s4ener:Storagec
Has Supply Range back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/hasSupplyRange
The SupplyRange this OperationMode of a Demand Driven Profile can deliver for the CEM to match the DemandRate. The start of the NumberRange is associated with an operation_mode_factor of 0, the end is associated with an operation_mode_factor of 1.
- has domain
- s4ener:OperationModec
- has range
- s4ener:NumberRangec
has tier incentive back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/hasTier
The relationship between the incentive table and the tiers it consists of
- has domain
- s4ener:IncentiveTableProfilec
Has Timer back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/hasTimer
The set of timers that are available in this Actuator or OperationModeProfile
- has domain
- saref:Actuatorc or s4ener:OperationModeProfilec
- has range
- s4ener:Timerc
has transition back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/hasTransition
The transitions between various saref:States or s4ener:OperationModes that either the Actuator or the OperationModeProfile can support.
- has domain
- saref:Actuatorc or s4ener:OperationModeProfilec
- has range
- s4ener:Transitionc
has upper boundary back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/hasUpperBoundary
This property relates a boundary to its upper boundary or the value at which this incentive becomes inactive. This value is optional, because the upper boundary can be inferred from the lower boundary of the next boundary.
- has domain
- s4ener:Incentivec
- has range
- s4ener:DataPointc
has usage back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/hasUsage
This property provides the possibility to add some additional information about the usage of a data-point or time-series. For example, a data point or time series can be used as an upper limit, a lower limit, a baseline, a maximum versus minimum value, or a consumption versus a production value.
- has range
- s4ener:Usagec
Has Usage Forecast back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/hasUsageForecast
Indicates the usage forecast that may be relevant to decide the energy flexibility strategy following a specific flexibility profile, specifically a fill rate based profile or incentive table.
In SAREF4ENER this property is intended to be applied on an s4ener:FlexibilityProfile.
- has range
- s4ener:TimeSeriesc
has value source back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/hasValueSource
Indicates the source (origin/foundation) of the observation forecasted values for a power sequence. If absent, the source is undefined. Remark: This element shall express the reliability of the forecast.
- has range
- s4ener:ValueSourcec
includes back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/includes
This property can be used to connect the flexibility offer and/or flexibility request to the flexibility profile. Additionally, it can be used to specify the s4ener:datapoint, s4ener:timeseries and ic-fc:forecast included in the flexibility offer and/or flexibility request.
is actuated by back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/isActuatedBy
A reference to an (external) actuator that can potentially activate this profile or where the instruction originates from.
- has domain
- s4ener:DemandDrivenProfilec or s4ener:FillRateProfilec or s4ener:FRBCInstructionc or s4ener:DDBCInstructionc
- has range
- saref:Actuatorc
is blocked by back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/isBlockedBy
The Timers that block this Transition from initiating while at least one of these Timers is not yet finished
- has domain
- s4ener:Transitionc
- has range
- s4ener:Timerc
is bound to back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/isBoundTo
The relationship between a device and its contractual power limit
- has domain
- s4ener:PowerLimitProfilec
- has range
- s4ener:ContractualPowerLimitc
is limited with back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/isLimitedWith
The relationship between device and failsafe power limit
- has domain
- s4ener:PowerLimitProfilec
- has range
- s4ener:FailsafePowerLimitc
is protected by back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/isProtectedBy
The relationship between the device and the nominal power limit
- has domain
- s4ener:PowerLimitProfilec
- has range
- s4ener:NominalPowerLimitc
Leakage Rate back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/leakageRate
Indicates how fast the momentary fill level will decrease per second due to leakage within the given range of the fill level.
- has domain
- s4ener:LeakageBehaviourElementc
- has range
- saref:PropertyValuec
Limit Type back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/limitType
Indicates if this ranges applies to the upper limit or the lower limit.
- has domain
- s4ener:AllowedLimitRangec
- has range
- s4ener:PowerEnvelopeLimitTypec
present fill level back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/presentFillLevel
A saref:PropertyValue with a percentage value indicating the fill level of the storage.
- has domain
- s4ener:Storagec
- has range
- saref:PropertyValuec
produced by back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/producedBy
A relation between an entity (datapoint, message, timeseries, instruction) that has been produced by a device or other agent.
In the context of SAREF4ENER this property is intended for s4ener:DataPoint, s4ener:TimeSeries, and the various types of flexibility instructions, FlexOffers and FlexRequests.
- has range
- foaf:Agentc or saref:Devicec
range boundary back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/rangeBoundary
Boundaries of the power range of this PEBC.AllowedLimitRange. The CEM is allowed to choose values within this range for the power envelope for the limit as described in limit_type. The start of the range shall be smaller or equal than the end of the range.
- has domain
- s4ener:AllowedLimitRangec or s4ener:EnergyConstraintc
- has range
- s4ener:NumberRangec
receives back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/receives
A relationship between a device (e.g., an appliance or a smart meter) and a load control event
receives power limit back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/receivesPowerLimit
The relationship between a power limit profile and the power limit it has received for its device to follow
- has domain
- s4ener:PowerLimitProfilec
- has range
- s4ener:PowerLimitc
relates to commodity quantity back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/relatesToCommodity
Relates the classes to the various commodities introduced by the S2 standard.
In the SAREF4ENER extension this property is intended for the following:
- s4ener:PowerRange
- s4ener:AllowedLimitRange
- s4ener:EnergyConstraint
- s4ener:PowerEnvelope
- has range
- saref:Commodityc
relates to offer back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/relatesToOffer
The relationship between the s4ener:FlexibilityInstruction and the flexibility offer.
- has domain
- s4ener:FlexibilityInstructionc
- has range
- s4ener:FlexOfferc
Relates to power profile back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/relatesToPowerProfile
ID of the PPBC.PowerProfileDefinition of which the PPBC.PowerSequence is being selected and scheduled by the CEM.
- has domain
- s4ener:PPBCInstructionc
- has range
- s4ener:PowerProfilec
Relates to power profile sequence back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/relatesToPowerProfileSequence
ID of the PPBC.PowerSequence that is being selected and scheduled by the CEM.
- has domain
- s4ener:PPBCInstructionc
- has range
- s4ener:PowerSequencec
Relates to power profile sequence container back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/relatesToPowerProfileSequenceContainer
ID of the PPBC.PowerSequnceContainer of which the PPBC.PowerSequence is being selected and scheduled by the CEM.
- has domain
- s4ener:PPBCInstructionc
- has range
- s4ener:PowerSequenceContainerc
relates to request back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/relatesToRequest
The relationship between the flexibility offer and flexibility request
- has domain
- s4ener:FlexOfferc
- has range
- s4ener:FlexRequestc
start of range back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/startOfRange
This property indicates the start of a number range.
- has domain
- s4ener:NumberRangec
- has range
- saref:PropertyValuec
Starts Timer back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/startsTimer
List of IDs of Timers that will be (re)started when this transition is initiated
- has domain
- s4ener:Transitionc
- has range
- s4ener:Timerc
to state operation mode back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/toOperationMode
ID of the OperationMode (exact type differs per ControlType) that will be switched to.
- has domain
- s4ener:Transitionc
- has range
- s4ener:OperationModec
triggers event action consume back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/triggersEventActionConsume
A relationship between a load control event and the consume action triggered by this event
triggers event action produce back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/triggersEventActionProduce
A relationship between a load control event and the produce action triggered by this event
value tendency back to ToC or Object Property ToC
IRI: https://saref.etsi.org/saref4ener/valueTendency
Indicates whether the tendency of an observation is rising, stable, or falling.
- has range
- s4ener:ValueTendencyc
Data Properties
- abnormal condition
- Abnormal Condition Only
- activate slot
- active repetition number
- active slot number
- brand name
- cheapest
- device code
- device name
- has firmware version
- greenest
- hardware revision
- has activation delay
- has active duration max
- has active duration min
- has active duration sum max
- has active duration sum min
- has creation time
- has default duration
- duration in xsd
- duration minimum
- Duration uncertainty
- has earliest start time
- end time
- has execution time
- has failsafe duration
- has index
- has end time Interruption
- Has Interruption Start Time
- has latest end time
- has lower average power
- has manufacturer node identification
- has max duration
- max pause before
- has min duration
- Has Operation Mode Factor
- has pause duration max
- has pause duration min
- has power limit duration
- has quantile
- has remaining pause time
- has remaining slot time
- has standard deviation
- has start time
- has task identifier
- has temporal resolution
- has transition costs
- Transition Duration
- transition Timestamp
- has update rate
- has upper average power
- has value
- is active
- is changeable
- is finished at
- is interruptible
- is obligatory
- is pausable
- is stoppable
- is writable
- max cycles per day
- node remote controllable
- optional slot
- progress
- repetition total
- requiresUpdate
- sequence remote controllable
- serial number
- slot activated
- slot number
- software revision
- supports reselection
- supports single slot scheduling only
- total sequences count max
- vendor code
- vendor name
abnormal condition back to ToC or Data Property ToC
IRI: https://saref.etsi.org/saref4ener/abnormalCondition
Indicates if this is an instruction during an abnormal condition
- has domain
- s4ener:FlexibilityInstructionc
- has range
- xsd:boolean
Abnormal Condition Only back to ToC or Data Property ToC
IRI: https://saref.etsi.org/saref4ener/abnormalConditionOnly
Indicates if this element can only be used during an abnormal condition.
In SAREF4ENER this property is intended to be used on the following properties:
- s4ener:OperationMode
- s4ener:Transition
- s4ener:AllowedLimitRange
- s4ener:PowerSequence
- has range
- xsd:boolean
activate slot back to ToC or Data Property ToC
IRI: https://saref.etsi.org/saref4ener/activateSlot
Indicates whether a slot is used (activateSlot = true) or not (activateSlot = false). SHALL be present if a slot is optional (i.e., the property s4ee:optionalSlot is TRUE), otherwise SHALL be absent (i.e. in case the slot is mandatory).
- has range
- xsd:boolean
active repetition number back to ToC or Data Property ToC
IRI: https://saref.etsi.org/saref4ener/activeRepetitionNumber
Indicates the current repetition of the sequence of slots. SHALL be present if a power sequence can repeat its sequence of slots (i.e., if s4ee:repetitionTotal is present and has a value > 1). Otherwise, it SHALL be absent.
- has range
- xsd:unsignedInt
active slot number back to ToC or Data Property ToC
IRI: https://saref.etsi.org/saref4ener/activeSlotNumber
Indicates the currently active slot number, if the power sequence state is set to 'running' or 'paused'. Otherwise it SHALL be omitted.
- has range
- xsd:unsignedInt
brand name back to ToC or Data Property ToC
IRI: https://saref.etsi.org/saref4ener/brandName
Provides the name of the brand of a device. Useful where the name of the brand and the vendor differs.
- has range
- xsd:string
cheapest back to ToC or Data Property ToC
IRI: https://saref.etsi.org/saref4ener/cheapest
Indicates whether a power sequence applies a configuration that minimises the user's energy bill (if set to TRUE). MAY be present. Absence of this element is equal to the presence with value FALSE.
- has range
- xsd:boolean
device code back to ToC or Data Property ToC
IRI: https://saref.etsi.org/saref4ener/deviceCode
Provides a device code for the device as defined by the manufacturer.
- has range
- xsd:string
device name back to ToC or Data Property ToC
IRI: https://saref.etsi.org/saref4ener/deviceName
Provides the name of the device as defined by the manufacturer.
- has range
- xsd:string
has firmware version back to ToC or Data Property ToC
IRI: https://saref.etsi.org/saref4ener/firmwareVersion
Version identifier of the firmware used in the device (provided by the manufacturer)
- has domain
- s4ener:Devicec
- has range
- xsd:string
greenest back to ToC or Data Property ToC
IRI: https://saref.etsi.org/saref4ener/greenest
Indicates whether a power sequence optimises the configuration towards the maximum availability of renewable energy (if set to TRUE). MAY be present. Absence of this element is equal to the presence with value FALSE.
- has range
- xsd:boolean
hardware revision back to ToC or Data Property ToC
IRI: https://saref.etsi.org/saref4ener/hardwareRevision
Indicates the hardware revision of the device as defined by the manufacturer.
- has range
- xsd:string
has activation delay back to ToC or Data Property ToC
IRI: https://saref.etsi.org/saref4ener/hasActivationDelay
The scheduled activation delay for a slot.
- has range
- xsd:duration
has active duration max back to ToC or Data Property ToC
IRI: https://saref.etsi.org/saref4ener/hasActiveDurationMax
The active maximum duration a power sequence can run without interruption.
This property is suggested to be added to SAREF4Ener_v2 to replace the time:TemporalEntity and/or time:DurationDescription.
- has super-properties
- s4ener:hasDurationdp
- has range
- xsd:duration
has active duration min back to ToC or Data Property ToC
IRI: https://saref.etsi.org/saref4ener/hasActiveDurationMin
The active mininum duration a power sequence can run without interruption.
This property is suggested to be added to SAREF4Ener_v2 to replace the time:TemporalEntity and/or time:DurationDescription.
- has super-properties
- s4ener:hasDurationdp
- has range
- xsd:duration
has active duration sum max back to ToC or Data Property ToC
IRI: https://saref.etsi.org/saref4ener/hasActiveDurationSumMax
The active maximum duration a power sequence can run in total (summation of all active times).
This property is suggested to be added to SAREF4Ener_v2 to replace the time:TemporalEntity and/or time:DurationDescription.
- has super-properties
- s4ener:hasDurationdp
- has range
- xsd:duration
has active duration sum min back to ToC or Data Property ToC
IRI: https://saref.etsi.org/saref4ener/hasActiveDurationSumMin
The active minimum duration a power sequence must run in total (summation of all active times).
This property is suggested to be added to SAREF4Ener_v2 to replace the time:TemporalEntity and/or time:DurationDescription.
- has super-properties
- s4ener:hasDurationdp
- has range
- xsd:duration
has creation time back to ToC or Data Property ToC
IRI: https://saref.etsi.org/saref4ener/hasCreationTime
The time instant that defines the creation time of a data point or quantity or forecast or similar entities. This is not the same as the time at which the quantity is in effect. For example, if a temperature is forecasted today at 12:30 (creation time of the forecast) for the following day at 14:45 (time when the temperature is expected to be in effect), the this instant should be 12:30 of today.
A creation time (instant). This is the point in time when the data point was created, which is not necessarily the time for which it is valid. In the case of soft-sensors or forecasters, a data point might have been created ahead of time, in the case of a direct observation a data point might created at its time of validity (or at the end of its validity time interval) and in the case of an archived value the data point might have been created after the fact.
- has range
- xsd:dateTimeStamp
has default duration back to ToC or Data Property ToC
IRI: https://saref.etsi.org/saref4ener/hasDefaultDuration
The duration of a slot (SHALL be present in case of 'determined slot'). If a slot has a configurable lenght, this element SHALL reflect the currently configured lenght
This property is suggested to be added to SAREF4Ener_v2 to replace the time:TemporalEntity and/or time:DurationDescription.
- has super-properties
- s4ener:hasDurationdp
- has range
- xsd:duration
duration in xsd back to ToC or Data Property ToC
IRI: https://saref.etsi.org/saref4ener/hasDuration
This property is added to the time:DurationDescription class to allow to express time duration also as xsd:duration. This is necessary because in the EEBus/E@h model time is always expressed as xsd:duration. We use this property to express the following time information in the EEBus/E@h model:
- the startTime of the power sequence (in the PowerSequence class). SHALL be present
- the endTime of the power sequence (in the PowerSequence class). If the value is available, it SHALL be denoted here. Otherwise the element SHALL be omitted.
- the startTime of observation as absolute or relative value (in the Observation class).
- the endTime of observation as absolute or relative value (in the Observation class).
The duration is expected to be described as in xsd:duration
This property specifies that the componenrt has a duration attribute further specified in the subproperty
This property is suggested to be added to SAREF4Ener_v2 to replace the time:TemporalEntity and/or time:DurationDescription.
- has sub-properties
- s4ener:hasPauseDurationMindp, s4ener:hasMaxDurationdp, s4ener:hasFailsafeDurationdp, s4ener:hasPauseDurationMaxdp, s4ener:hasTransitionDurationdp, s4ener:hasDurationMindp, s4ener:hasDefaultDurationdp, s4ener:hasActiveDurationMindp, s4ener:hasMinDurationdp, s4ener:hasActiveDurationSumMindp, s4ener:hasActiveDurationSumMaxdp, s4ener:hasDurationUncertaintydp, s4ener:hasMaxPauseBeforedp, s4ener:hasActiveDurationMaxdp, s4ener:hasPowerLimitDurationdp
- has range
- xsd:duration
duration minimum back to ToC or Data Property ToC
IRI: https://saref.etsi.org/saref4ener/hasDurationMin
The minimum duration for some component
This property is suggested to be added in SAREF4ENER_V2
- has super-properties
- s4ener:hasDurationdp
- has range
- xsd:duration
Duration uncertainty back to ToC or Data Property ToC
IRI: https://saref.etsi.org/saref4ener/hasDurationUncertainty
The uncertainty of the duration given in the s4ener:defaultDuration property.
- has super-properties
- s4ener:hasDurationdp
- has range
- xsd:duration
has earliest start time back to ToC or Data Property ToC
IRI: https://saref.etsi.org/saref4ener/hasEarliestStartTime
The earliest possible start time for a power sequence or a slot. Only 'xs:duration' value types SHALL be used to denote a relative time which relates to 'now' as time 0.
Note: This element applies to the first repetition of the slot number only.
This property is suggested to be added to SAREF4Ener_v2 to replace the time:TemporalEntity and/or time:DurationDescription.
- has super-properties
- saref:hasTimestampdp
- has range
- xsd:dateTimeStamp
end time back to ToC or Data Property ToC
IRI: https://saref.etsi.org/saref4ener/hasEndTime
The endTime of a power sequence. If the value is available, it SHALL be denoted here. Otherwise the element SHALL be omitted.
The end time of a slot MAY be stated in this element. The following equation SHALL apply: endTime - startTime = defaultDuration.
- has super-properties
- saref:hasTimestampdp
- has range
- xsd:duration
has execution time back to ToC or Data Property ToC
IRI: https://saref.etsi.org/saref4ener/hasExecutionTime
Start time of the instruction
- has super-properties
- saref:hasTimestampdp
- has domain
- s4ener:FlexibilityInstructionc
- has range
- xsd:dateTimeStamp
has failsafe duration back to ToC or Data Property ToC
IRI: https://saref.etsi.org/saref4ener/hasFailsafeDuration
The relationship between the failsafe power limit and its duration. This property indicates the minimum duration the fail safe state will take once a device has entered that state.
- has super-properties
- s4ener:hasDurationdp
- has domain
- s4ener:FailsafeStatec
- has range
- xsd:duration
has index back to ToC or Data Property ToC
IRI: https://saref.etsi.org/saref4ener/hasIndex
Gives the index for elements that are an array in the S2 specification. Can be used regularly as well as in RDF* manner on properties.
- has range
- xsd:integer
has end time Interruption back to ToC or Data Property ToC
IRI: https://saref.etsi.org/saref4ener/hasInterruptionEndTime
The end time included in an Interruption Instruction message indicating when the interruption should end.
- has super-properties
- saref:hasTimestampdp
- has domain
- s4ener:InterruptionInstructionc
- has range
- xsd:dateTimeStamp
Has Interruption Start Time back to ToC or Data Property ToC
IRI: https://saref.etsi.org/saref4ener/hasInterruptionStartTime
The start time included in an Interruption Instruction message indicating when the interruption should start.
- has super-properties
- saref:hasTimestampdp
- has domain
- s4ener:InterruptionInstructionc
- has range
- xsd:dateTimeStamp
has latest end time back to ToC or Data Property ToC
IRI: https://saref.etsi.org/saref4ener/hasLatestEndTime
The latest possible end time for a power sequence or a slot. Only 'xs:duration' value types SHALL be used to denote a relative time which relates to 'now' as time 0.
Note: This element applies to the first repetition of the slot number only.
This property is suggested to be added to SAREF4Ener_v2 to replace the time:TemporalEntity and/or time:DurationDescription.
- has super-properties
- saref:hasTimestampdp
has lower average power back to ToC or Data Property ToC
IRI: https://saref.etsi.org/saref4ener/hasLowerAveragePower
The lower average power associated with this Energy constraint.
- has domain
- s4ener:EnergyConstraintc
- has range
- xsd:integer
has manufacturer node identification back to ToC or Data Property ToC
IRI: https://saref.etsi.org/saref4ener/hasManufacturerNodeIdentification
A node identification for the device as defined by the manufacturer. This could be used for the identification of a device, even if it was removed from the network and re-joined later with changed node address.
- has super-properties
- saref:hasIdentifierdp
- has domain
- saref:Devicec
has max duration back to ToC or Data Property ToC
IRI: https://saref.etsi.org/saref4ener/hasMaxDuration
If a slot has a configurable duration, it SHALL be present and denote the maximum supported configuration. Note: This element applies to the first repetition of the slot number only
- has super-properties
- s4ener:hasDurationdp
- has domain
- s4ener:PowerSequencec
- has range
- xsd:duration
max pause before back to ToC or Data Property ToC
IRI: https://saref.etsi.org/saref4ener/hasMaxPauseBefore
The maximum duration for which a device can be paused between the end of the previous running sequence and the start of this one
- has super-properties
- s4ener:hasDurationdp
- has domain
- s4ener:PowerSequencec
- has range
- xsd:duration
has min duration back to ToC or Data Property ToC
IRI: https://saref.etsi.org/saref4ener/hasMinDuration
If a slot has a configurable duration, it SHALL be present and denote the minimum supported configuration. Note: This element applies to the first repetition of the slot number only.
- has super-properties
- s4ener:hasDurationdp
- has domain
- s4ener:PowerSequencec
- has range
- xsd:duration
Has Operation Mode Factor back to ToC or Data Property ToC
IRI: https://saref.etsi.org/saref4ener/hasOperationModeFactor
The number indicates the factor with which the FRBC.OperationMode or OMBC.OperationMode is usedconfigured. The factor should be greater than or equal than 0 and less or equal to 1.
Within the SAREF4ENER extension, this property is to be used on the following classes:
- s4ener:OMBCInstruction
- s4ener:OperationMode
- saref:Actuator
- s4ener:FRBCInstruction
- s4ener:DDBCInstruction
- has range
- xsd:decimal
has pause duration max back to ToC or Data Property ToC
IRI: https://saref.etsi.org/saref4ener/hasPauseDurationMax
The maximum duration a power sequence can pause after the end of an activity.
- has super-properties
- s4ener:hasDurationdp
- has domain
- s4ener:PowerSequencec
- has range
- xsd:duration
has pause duration min back to ToC or Data Property ToC
IRI: https://saref.etsi.org/saref4ener/hasPauseDurationMin
The minimum duration a power sequence can pause after the end of an activity.
- has super-properties
- s4ener:hasDurationdp
- has domain
- s4ener:PowerSequencec
- has range
- xsd:duration
has power limit duration back to ToC or Data Property ToC
IRI: https://saref.etsi.org/saref4ener/hasPowerLimitDuration
The relationship between the power limit and its duration. Power limit may come with a time period of validity based on duration
- has super-properties
- s4ener:hasDurationdp
- has domain
- s4ener:PowerLimitc
- has range
- xsd:duration
has quantile back to ToC or Data Property ToC
IRI: https://saref.etsi.org/saref4ener/hasQuantile
Used to define a quantile for example on a data point of a quantile time series. The quantile must be a ratio, usually a percentage. In a quantile forecast the hasQuantile property cannot be empty. his property assigns to the data point the percentage of values that are below this value. In other words, a data point with quantile 90 indicates that 90 % of other measurements are (estimated to be) lower.
- has domain
- s4ener:DataPointc
- has range
- xsd:decimal
has remaining pause time back to ToC or Data Property ToC
IRI: https://saref.etsi.org/saref4ener/hasRemainingPauseTime
The duration that the current slot (s4ee:activeSlotNumber) permits being paused. This element SHALL ONLY be present if the power sequence is interruptible. Otherwise, it SHALL be omitted. In case the power sequence is interruptible the following rules apply: If the element is absent this means there is no explicit pause duration restriction for the current slot; a value of 0s denoted the slot does not permit being paused.
- has range
- xsd:duration
has remaining slot time back to ToC or Data Property ToC
IRI: https://saref.etsi.org/saref4ener/hasRemainingSlotTime
If state is set to 'running' or 'paused' AND the slot is determined, this element SHALL contain the time the slot still needs to be in 'running' state (this also means the value remains constant during a 'paused' state). Otherwise it SHALL be omitted.
- has range
- xsd:duration
has standard deviation back to ToC or Data Property ToC
IRI: https://saref.etsi.org/saref4ener/hasStandardDeviation
The standard deviation (i.e. the square root of the average of the squared deviations of the values subtracted from their average value) can be described with this property.
- has domain
- s4ener:GaussianDataPointc
- has range
- xsd:decimal
has start time back to ToC or Data Property ToC
IRI: https://saref.etsi.org/saref4ener/hasStartTime
The startTime of a power sequence or slot. SHALL be present
- has super-properties
- saref:hasTimestampdp
- has range
- xsd:dateTimeStamp
has task identifier back to ToC or Data Property ToC
IRI: https://saref.etsi.org/saref4ener/hasTaskIdentifier
Used by a device that wants to uniquely identify reoccurring types of power sequences. For example, specific types of washing cycles with specific parameters SHOULD have the same s4ener:taskIdentifier value every time they are offered using power sequences.
- has super-properties
- saref:hasIdentifierdp
- has domain
- s4ener:PowerSequencec
has temporal resolution back to ToC or Data Property ToC
IRI: https://saref.etsi.org/saref4ener/hasTemporalResolution
The resolution is the distance between two observation timestamps. This only makes sense if the observations are equidistant.
- has range
- xsd:duration
has transition costs back to ToC or Data Property ToC
IRI: https://saref.etsi.org/saref4ener/hasTransitionCosts
Absolute costs for going through this Transition in the currency as described in the ResourceManagerDetails.
- has domain
- s4ener:Transitionc
- has range
- xsd:decimal
Transition Duration back to ToC or Data Property ToC
IRI: https://saref.etsi.org/saref4ener/hasTransitionDuration
Indicates the time between the initiation of this Transition, and the time at which the device behaves according to the Operation Mode which is defined in the appropriate data element. When no value is provided it is assumed the transition duration is negligible.
- has super-properties
- s4ener:hasDurationdp
- has domain
- s4ener:Transitionc
- has range
- xsd:duration
transition Timestamp back to ToC or Data Property ToC
IRI: https://saref.etsi.org/saref4ener/hasTransitionTimestamp
Time at which the transition from the previous Operation Mode was initiated. This value shall always be provided, unless the active OperationMode is the first OperationMode the Resource Manager is aware of.
- has super-properties
- saref:hasTimestampdp
- has domain
- s4ener:OperationModec or saref:Actuatorc
- has range
- xsd:dateTimeStamp
has update rate back to ToC or Data Property ToC
IRI: https://saref.etsi.org/saref4ener/hasUpdateRate
The rate at which a data point or time-series or forecast or other data entity is being updated.
If the time series gets regularly updated, then the time between two updates can be recorded here.
- has range
- xsd:duration
has upper average power back to ToC or Data Property ToC
IRI: https://saref.etsi.org/saref4ener/hasUpperAveragePower
The upper average power of an Energy constraint of a Power Envelope profile.
- has domain
- s4ener:EnergyConstraintc
- has range
- xsd:integer
has value back to ToC or Data Property ToC
IRI: https://saref.etsi.org/saref4ener/hasValue
Power value expressed in the unit associated with the Commodity of the Power Value.
- has range
- xsd:decimal
is active back to ToC or Data Property ToC
IRI: https://saref.etsi.org/saref4ener/isActive
Indicates whether the power limit is currently active
- has domain
- s4ener:PowerLimitc
- has range
- xsd:boolean
is changeable back to ToC or Data Property ToC
IRI: https://saref.etsi.org/saref4ener/isChangeable
A relationship indicating that this element can be changed by its operator. The boolean value indicates whether it is indeed changeable.
In the SAREF4ENER extension this property is intended for PowerLimits and IncentiveTable elements, such as the IncentiveTableProfile, IncentiveTableSlot, and the IncentiveTableTier.
- has range
- xsd:boolean
is finished at back to ToC or Data Property ToC
IRI: https://saref.etsi.org/saref4ener/isFinishedAt
Indicates when the Timer will be finished. If the DateTimeStamp is in the future, the timer is not yet finished. If the DateTimeStamp is in the past, the timer is finished. When the timer was never started, the value can be an arbitrary DateTimeStamp in the past.
- has super-properties
- saref:hasTimestampdp
- has domain
- s4ener:Timerc
- has range
- xsd:dateTimeStamp
is interruptible back to ToC or Data Property ToC
IRI: https://saref.etsi.org/saref4ener/isInterruptible
This property indicates whether the PowerSequence is interruptible.
- has domain
- s4ener:PowerSequencec
- has range
- xsd:boolean
is obligatory back to ToC or Data Property ToC
IRI: https://saref.etsi.org/saref4ener/isObligatory
A relationship between the power limit and the boolean value indicating whether the power limit is obligatory
- has domain
- s4ener:PowerLimitc
- has range
- xsd:boolean
is pausable back to ToC or Data Property ToC
IRI: https://saref.etsi.org/saref4ener/isPausable
Specifies if the power sequence is pausable.
- has range
- xsd:boolean
is stoppable back to ToC or Data Property ToC
IRI: https://saref.etsi.org/saref4ener/isStoppable
Specifies if the power sequence is stoppable.
- has range
- xsd:boolean
is writable back to ToC or Data Property ToC
IRI: https://saref.etsi.org/saref4ener/isWritable
This Boolean value indicates whether this power plan is writable or fixed.
- has domain
- s4ener:PowerPlanc
- has range
- xsd:boolean
max cycles per day back to ToC or Data Property ToC
IRI: https://saref.etsi.org/saref4ener/maxCyclesPerDay
States the maximum amount of starts a power sequence (of a device) allows per day.
- has range
- xsd:unsignedInt
node remote controllable back to ToC or Data Property ToC
IRI: https://saref.etsi.org/saref4ener/nodeRemoteControllable
Indicates whether the power profile of a device is configured for remote control (e.g., by an energy management system).This refers to the selection chosen by the user on the remote control feature of the device. If nodeRemoteControllable is equal to FALSE, all the supported power sequences shall set the sequenceRemoteControllable property to FALSE. If nodeRemoteControllable is equal to TRUE, at least one power sequence shall be remotely controllable by setting the sequenceRemoteControllable property to TRUE.
- has range
- xsd:boolean
optional slot back to ToC or Data Property ToC
IRI: https://saref.etsi.org/saref4ener/optionalSlot
Indicates whether a slot is optional (if set to TRUE). Otherwise, if a slot is mandatory, SHALL be omitted or set to FALSE. Note: This element applies to every repetition of the slot number.
- has range
- xsd:boolean
progress back to ToC or Data Property ToC
IRI: https://saref.etsi.org/saref4ener/progress
Time that has passed since the selected sequence has started. A value must be provided, unless no sequence has been selected or the selected sequence hasn't started yet.
- has domain
- s4ener:PowerSequenceContainerc
- has range
- xsd:duration
repetition total back to ToC or Data Property ToC
IRI: https://saref.etsi.org/saref4ener/repetitionsTotal
Contains the total number of repetitions, if a power sequence repeats its sequence of slots. Absence of the element is equal to a presence with a value of 0 (zero). SHALL be absent if the value is 1.
- has range
- xsd:unsignedInt
requiresUpdate back to ToC or Data Property ToC
IRI: https://saref.etsi.org/saref4ener/requiresUpdate
The relationship between the incentive table element and the boolean data indicating whether the incentive table requires an update.
In the SAREF4ENER extension this property is intended for the following classes:
- IncentiveTableProfile
- IncentiveTableTier
- IncentiveTableSlot
- has range
- xsd:boolean
sequence remote controllable back to ToC or Data Property ToC
IRI: https://saref.etsi.org/saref4ener/sequenceRemoteControllable
Denotes whether a power sequence is modifiable (if value is TRUE) or not (if value is FALSE). Modifiability is required to configure power sequences and slots. It is also required to change a power sequence state.
- has range
- xsd:boolean
serial number back to ToC or Data Property ToC
IRI: https://saref.etsi.org/saref4ener/serialNumber
Indicates the serial number of a device as defined by the manufacturer. Usually the same as printed on the case.
- has range
- xsd:string
slot activated back to ToC or Data Property ToC
IRI: https://saref.etsi.org/saref4ener/slotActivated
If a slot is optional, represents the current status of the slot (true = the slot will be executed, false = the slot will not be executed). If the slot is not optional, this element SHALL be absent.
- has range
- xsd:boolean
slot number back to ToC or Data Property ToC
IRI: https://saref.etsi.org/saref4ener/slotNumber
Provides a unique slot identifier for a certain power sequence
- has range
- xsd:unsignedInt
software revision back to ToC or Data Property ToC
IRI: https://saref.etsi.org/saref4ener/softwareRevision
Indicates the software revision of a device as defined by the manufacturer.
- has range
- xsd:string
supports reselection back to ToC or Data Property ToC
IRI: https://saref.etsi.org/saref4ener/supportsReselection
If set toTRUE, the power profile of a device does not restrict the number of power sequence re-selections by the CEM, i.e. within a given alternative the CEM may first choose one power sequence, alter the selection by configuring another sequence later on, then alter the selection again, etc. (provided the process rules and data still permit configuration). If supportsReselection is set to FALSE, the device permits the CEM to select a power sequence of an alternative only once.
- has range
- xsd:boolean
supports single slot scheduling only back to ToC or Data Property ToC
IRI: https://saref.etsi.org/saref4ener/supportsSingleSlotSchedulingOnly
If set toTRUE, the power profile of a device does NOT permit the modification of more than one slot per configuration command.
- has range
- xsd:boolean
total sequences count max back to ToC or Data Property ToC
IRI: https://saref.etsi.org/saref4ener/totalSequencesCountMax
Represents the total number of power sequences supported by the power profile of a device
- has range
- xsd:unsignedInt
vendor code back to ToC or Data Property ToC
IRI: https://saref.etsi.org/saref4ener/vendorCode
Provides a code for the vendor of the device as defined by the manufacturer.
- has range
- xsd:string
vendor name back to ToC or Data Property ToC
IRI: https://saref.etsi.org/saref4ener/vendorName
Provides the name of the vendor of the device as defined by the manufacturer.
- has range
- xsd:string
Named Individuals
- Aborted
- Absolute cost
- Accepted
- Average
- Baseline
- Battery power source, aka Battery power source
- CO2 Emission
- Calculated, aka Calculated
- Committed
- Completed
- Consumption
- DC Power source, aka DC Power source
- Defer
- Downflex
- Electric Power 3 Phase Symmetric, aka Electric Power 3 Phase Symmetric
- Electric Power L1, aka Electric Power L1
- Electric Power L2, aka Electric Power L2
- Electric Power L3, aka Electric Power L3
- Electricity, aka Electricity
- Emergency
- Empirical, aka Empirical
- Energy, aka Energy
- Energy Consumer
- Energy Producer
- Energy Storage
- Euro per kilo watt hour, aka Euro per kilo watt hour
- Event accepted
- Event cancelled
- Event error
- Event rejected
- Event started
- Event stopped
- EXECUTING, aka EXECUTING
- Falling, aka Falling
- Finished, aka Finished
- Gas, aka Gas
- Heat, aka Heat
- Heat Flow Rate, aka Heat Flow Rate
- Heat Temperature, aka Heat Temperature
- Heat Thermal Power, aka Heat Thermal Power
- Hydrogen Flow Rate, aka Hydrogen Flow Rate
- Inactive
- Increase
- Interrupted, aka Interrupted
- Invalid
- Lower Limit
- Mains3Phase, aka Mains3Phase
- Mains single phase, aka Mains single phase
- Maximum
- Measured, aka Measured
- Minimum
- Natural Gas Flow Rate, aka Natural Gas Flow Rate
- New
- Normal
- NotScheduled, aka NotScheduled
- Oil, aka Oil
- Oil Flow Rate, aka Oil Flow Rate
- Pause
- Paused
- Pending
- Power, aka Power
- Preliminary
- Production
- Reduce
- Rejected
- Relative cost
- Renewable energy percentage
- Resume
- Revoked
- Rising, aka Rising
- Running
- Scheduled
- Scheduled paused
- Setpoint
- Skewness
- Stable, aka Stable
- Started
- Succeeded
- Upflex
- Upper Limit, aka Upper limit
- Vanish
Aborted back to ToC or Named Individuals ToC
IRI: https://saref.etsi.org/saref4ener/Aborted
Instruction was aborted.
The selected PPBC.PowerSequence was aborted by the device and will not continue
- belongs to
- s4ener:InstructionStatusc
s4ener:PowerSequenceStatusc
Absolute cost back to ToC or Named Individuals ToC
IRI: https://saref.etsi.org/saref4ener/AbsoluteCost
The incentive type ''absolute cost'' defined in the incentive table.
- belongs to
- s4ener:IncentiveTypec
Accepted back to ToC or Named Individuals ToC
IRI: https://saref.etsi.org/saref4ener/Accepted
Instruction has been accepted
- belongs to
- s4ener:InstructionStatusc
Average back to ToC or Named Individuals ToC
IRI: https://saref.etsi.org/saref4ener/Average
The datapoint indicates an average value aggregated over a number of values.
- belongs to
- s4ener:Usagec
Baseline back to ToC or Named Individuals ToC
IRI: https://saref.etsi.org/saref4ener/BaseLine
This datapoint indicates the baseline.
- belongs to
- s4ener:Usagec
Battery power source, aka Battery power source back to ToC or Named Individuals ToC
IRI: https://saref.etsi.org/saref4ener/BatteryPowerSource
This Power Source codelist element indicates that a battery is the power source of this device.
- belongs to
- s4ener:PowerSourcec
CO2 Emission back to ToC or Named Individuals ToC
IRI: https://saref.etsi.org/saref4ener/CO2Emission
The incentive type ''CO2 Emission'' defined in the incentive table.
- belongs to
- s4ener:IncentiveTypec
Calculated, aka Calculated back to ToC or Named Individuals ToC
IRI: https://saref.etsi.org/saref4ener/Calculated
This value source codelist element indicates that this observation has been calculated instead of measured or empirical.
- belongs to
- s4ener:ValueSourcec
Committed back to ToC or Named Individuals ToC
IRI: https://saref.etsi.org/saref4ener/Committed
The committed version of this concept, usually an incentive table or power plan
- belongs to
- s4ener:ScopeTypec
Completed back to ToC or Named Individuals ToC
IRI: https://saref.etsi.org/saref4ener/Completed
Power sequence state with value 'completed'
- belongs to
- s4ener:PowerSequenceStatec
Consumption back to ToC or Named Individuals ToC
IRI: https://saref.etsi.org/saref4ener/Consumption
This datapoint indicates the consumption.
- belongs to
- s4ener:Usagec
DC Power source, aka DC Power source back to ToC or Named Individuals ToC
IRI: https://saref.etsi.org/saref4ener/DCPowerSource
This Power Source codelist element indicates that the type of power source is DC.
- belongs to
- s4ener:PowerSourcec
Defer back to ToC or Named Individuals ToC
IRI: https://saref.etsi.org/saref4ener/Defer
Indicating that the limited load or generation will be postponed to a later moment
- belongs to
- s4ener:PowerEnvelopeConsequenceTypec
Downflex back to ToC or Named Individuals ToC
IRI: https://saref.etsi.org/saref4ener/Downflex
This datapoint indicates the down flexibility.
- belongs to
- s4ener:Usagec
Electric Power 3 Phase Symmetric, aka Electric Power 3 Phase Symmetric back to ToC or Named Individuals ToC
IRI: https://saref.etsi.org/saref4ener/ElectricPower3PhaseSymmetric
Electric power described in Watt on when power is equally shared among the three phases. Only applicable for 3 phase devices.
- belongs to
- saref:Commodityc
Electric Power L1, aka Electric Power L1 back to ToC or Named Individuals ToC
IRI: https://saref.etsi.org/saref4ener/ElectricPowerL1
Electric power described in Watt on phase 1. If a device utilizes only one phase it should always use L1.
- belongs to
- saref:Commodityc
Electric Power L2, aka Electric Power L2 back to ToC or Named Individuals ToC
IRI: https://saref.etsi.org/saref4ener/ElectricPowerL2
Electric power described in Watt on phase 2. Only applicable for 3 phase devices.
- belongs to
- saref:Commodityc
Electric Power L3, aka Electric Power L3 back to ToC or Named Individuals ToC
IRI: https://saref.etsi.org/saref4ener/ElectricPowerL3
Electric power described in Watt on phase 3. Only applicable for 3 phase devices.
- belongs to
- saref:Commodityc
Electricity, aka Electricity back to ToC or Named Individuals ToC
IRI: https://saref.etsi.org/saref4ener/Electricity
Identifier for Commodity ELECTRICITY
- belongs to
- saref:Commodityc
Emergency back to ToC or Named Individuals ToC
IRI: https://saref.etsi.org/saref4ener/Emergency
Load control event action with value 'emergency'
- belongs to
- s4ener:EventActionConsumec
s4ener:EventActionProducec
Empirical, aka Empirical back to ToC or Named Individuals ToC
IRI: https://saref.etsi.org/saref4ener/Empirical
This value source codelist element indicates this value is an empirical value instead of a calculated or measured value.
- belongs to
- s4ener:ValueSourcec
Energy, aka Energy back to ToC or Named Individuals ToC
IRI: https://saref.etsi.org/saref4ener/Energy
The Property of Energy that a Value Property may be about. This concept can be related to observations and property values that are characterized by a certain value measured in an energy unit (such as Kilowatt_Hour or Watt_hour).
The Property of Energy that a Value Property may be about. This concept can be related to observations and property values that are characterized by a certain value measured in an energy unit (such as Kilowatt_Hour or Watt_hour).
- belongs to
- saref:Propertyc
Energy Consumer back to ToC or Named Individuals ToC
IRI: https://saref.etsi.org/saref4ener/EnergyConsumer
Identifier for RoleType Consumer
- belongs to
- s4ener:RoleTypec
Energy Producer back to ToC or Named Individuals ToC
IRI: https://saref.etsi.org/saref4ener/EnergyProducer
Identifier for RoleType Producer
- belongs to
- s4ener:RoleTypec
Energy Storage back to ToC or Named Individuals ToC
IRI: https://saref.etsi.org/saref4ener/EnergyStorage
Identifier for RoleType Storage
- belongs to
- s4ener:RoleTypec
Euro per kilo watt hour, aka Euro per kilo watt hour back to ToC or Named Individuals ToC
IRI: https://saref.etsi.org/saref4ener/EuroPerKilowattHour
Unit of Measure to represent euro's per kilowatt per hour
- belongs to
- saref:UnitOfMeasurec
Event accepted back to ToC or Named Individuals ToC
IRI: https://saref.etsi.org/saref4ener/EventAccepted
Load control state with value 'event accepted'
- belongs to
- s4ener:EventStateConsumec
s4ener:EventStateProducec
Event cancelled back to ToC or Named Individuals ToC
IRI: https://saref.etsi.org/saref4ener/EventCancelled
Load control state with value 'event cancelled'
- belongs to
- s4ener:EventStateConsumec
s4ener:EventStateProducec
Event error back to ToC or Named Individuals ToC
IRI: https://saref.etsi.org/saref4ener/EventError
Load control state with value 'event error'
- belongs to
- s4ener:EventStateConsumec
s4ener:EventStateProducec
Event rejected back to ToC or Named Individuals ToC
IRI: https://saref.etsi.org/saref4ener/EventRejected
Load control state with value 'event rejected'
- belongs to
- s4ener:EventStateConsumec
s4ener:EventStateProducec
Event started back to ToC or Named Individuals ToC
IRI: https://saref.etsi.org/saref4ener/EventStarted
Load control state with value 'event started'
- belongs to
- s4ener:EventStateConsumec
s4ener:EventStateProducec
Event stopped back to ToC or Named Individuals ToC
IRI: https://saref.etsi.org/saref4ener/EventStopped
Load control state with value 'event stopped'
- belongs to
- s4ener:EventStateConsumec
s4ener:EventStateProducec
EXECUTING, aka EXECUTING back to ToC or Named Individuals ToC
IRI: https://saref.etsi.org/saref4ener/Executing
The selected PPBC.PowerSequence is currently being executed
- belongs to
- s4ener:PowerSequenceStatusc
Falling, aka Falling back to ToC or Named Individuals ToC
IRI: https://saref.etsi.org/saref4ener/Falling
This value tendency codelist element indicates that the tendency of this observation indicates that the value is decreasing (i.e., falling).
- belongs to
- s4ener:ValueTendencyc
Finished, aka Finished back to ToC or Named Individuals ToC
IRI: https://saref.etsi.org/saref4ener/Finished
The selected PPBC.PowerSequence was executed and finished successfully
- belongs to
- s4ener:PowerSequenceStatusc
Gas, aka Gas back to ToC or Named Individuals ToC
IRI: https://saref.etsi.org/saref4ener/Gas
Identifier for Commodity GAS
- belongs to
- saref:Commodityc
Heat, aka Heat back to ToC or Named Individuals ToC
IRI: https://saref.etsi.org/saref4ener/Heat
Identifier for Commodity Heat
- belongs to
- saref:Commodityc
Heat Flow Rate, aka Heat Flow Rate back to ToC or Named Individuals ToC
IRI: https://saref.etsi.org/saref4ener/HeatFlowRate
Flow rate of heat carrying gas or liquid in liters per second
- belongs to
- saref:Commodityc
Heat Temperature, aka Heat Temperature back to ToC or Named Individuals ToC
IRI: https://saref.etsi.org/saref4ener/HeatTemperature
Heat described in degrees Celsius
- belongs to
- saref:Commodityc
Heat Thermal Power, aka Heat Thermal Power back to ToC or Named Individuals ToC
IRI: https://saref.etsi.org/saref4ener/HeatThermalPower
Thermal power in Watt
- belongs to
- saref:Commodityc
Hydrogen Flow Rate, aka Hydrogen Flow Rate back to ToC or Named Individuals ToC
IRI: https://saref.etsi.org/saref4ener/HydrogenFlowRate
Gas flow rate described in grams per second
- belongs to
- saref:Commodityc
Inactive back to ToC or Named Individuals ToC
IRI: https://saref.etsi.org/saref4ener/Inactive
Power sequence state with value 'inactive'
- belongs to
- s4ener:PowerSequenceStatec
Increase back to ToC or Named Individuals ToC
IRI: https://saref.etsi.org/saref4ener/Increase
Load control event action with value 'increase'
- belongs to
- s4ener:EventActionConsumec
s4ener:EventActionProducec
Interrupted, aka Interrupted back to ToC or Named Individuals ToC
IRI: https://saref.etsi.org/saref4ener/Interrupted
The selected PPBC.PowerSequence is being executed, but is currently interrupted and will continue afterwards
- belongs to
- s4ener:PowerSequenceStatusc
Invalid back to ToC or Named Individuals ToC
IRI: https://saref.etsi.org/saref4ener/Invalid
Power sequence state with value 'invalid'
- belongs to
- s4ener:PowerSequenceStatec
Lower Limit back to ToC or Named Individuals ToC
IRI: https://saref.etsi.org/saref4ener/LowerLimit
The PowerEnvelopeLimitType codelist element indicating the lower limit.
This data point indicates the lower limit, for example of a PowerEnvelopeLimitType.
- belongs to
- s4ener:PowerEnvelopeLimitTypec
s4ener:Usagec
Mains3Phase, aka Mains3Phase back to ToC or Named Individuals ToC
IRI: https://saref.etsi.org/saref4ener/Mains3Phase
This Power Source codelist element indicates that the power source of this device is Mains 3 Phase.
- belongs to
- s4ener:PowerSourcec
Mains single phase, aka Mains single phase back to ToC or Named Individuals ToC
IRI: https://saref.etsi.org/saref4ener/MainsSinglePhase
This codelist element of power source indicates that the power source is the mains single phase.
- belongs to
- s4ener:PowerSourcec
Maximum back to ToC or Named Individuals ToC
IRI: https://saref.etsi.org/saref4ener/Maximum
The usage of this datapoint is the Maximum value.
- belongs to
- s4ener:Usagec
Measured, aka Measured back to ToC or Named Individuals ToC
IRI: https://saref.etsi.org/saref4ener/Measured
The value source type indicates that this data point has been measured by a device.
- belongs to
- s4ener:ValueSourcec
Minimum back to ToC or Named Individuals ToC
IRI: https://saref.etsi.org/saref4ener/Minimum
The usage of this datapoint is the Minimum value.
- belongs to
- s4ener:Usagec
Natural Gas Flow Rate, aka Natural Gas Flow Rate back to ToC or Named Individuals ToC
IRI: https://saref.etsi.org/saref4ener/NaturalGasFlowRate
Gas flow rate described in liters per second
- belongs to
- saref:Commodityc
New back to ToC or Named Individuals ToC
IRI: https://saref.etsi.org/saref4ener/New
Instruction was newly created
- belongs to
- s4ener:InstructionStatusc
Normal back to ToC or Named Individuals ToC
IRI: https://saref.etsi.org/saref4ener/Normal
The value NORMAL used to instantiate the Load Control Event Action class and MeasurandState class
- belongs to
- s4ener:EventActionConsumec
s4ener:EventActionProducec
NotScheduled, aka NotScheduled back to ToC or Named Individuals ToC
IRI: https://saref.etsi.org/saref4ener/NotScheduled
No PPBC.PowerSequence within the PPBC.PowerSequenceContainer is scheduled
- belongs to
- s4ener:PowerSequenceStatusc
Oil, aka Oil back to ToC or Named Individuals ToC
IRI: https://saref.etsi.org/saref4ener/Oil
Identifier for Commodity OIL
- belongs to
- saref:Commodityc
Oil Flow Rate, aka Oil Flow Rate back to ToC or Named Individuals ToC
IRI: https://saref.etsi.org/saref4ener/OilFlowRate
Oil flow rate described in liters per hour
- belongs to
- saref:Commodityc
Pause back to ToC or Named Individuals ToC
IRI: https://saref.etsi.org/saref4ener/Pause
Load control event action with value 'pause'
- belongs to
- s4ener:EventActionConsumec
s4ener:EventActionProducec
Paused back to ToC or Named Individuals ToC
IRI: https://saref.etsi.org/saref4ener/Paused
Power sequence state or sensor state with value 'paused'
- belongs to
- s4ener:PowerSequenceStatec
Pending back to ToC or Named Individuals ToC
IRI: https://saref.etsi.org/saref4ener/Pending
Power sequence state with value 'pending'
- belongs to
- s4ener:PowerSequenceStatec
Power, aka Power back to ToC or Named Individuals ToC
IRI: https://saref.etsi.org/saref4ener/Power
The Property of Power that a Value Property may be about. This concept can be related to observation or property values that are characterized by a certain value that is measured in a power unit (such as watt or kilowatt).
The Property of Power that a Value Property may be about. This concept can be related to observation or property values that are characterized by a certain value that is measured in a power unit (such as watt or kilowatt).
- belongs to
- saref:Propertyc
Preliminary back to ToC or Named Individuals ToC
IRI: https://saref.etsi.org/saref4ener/Preliminary
The preliminary version of this concept, usually an incentive table or power plan
- belongs to
- s4ener:ScopeTypec
Production back to ToC or Named Individuals ToC
IRI: https://saref.etsi.org/saref4ener/Production
This datapoint indicates the energy production.
- belongs to
- s4ener:Usagec
Reduce back to ToC or Named Individuals ToC
IRI: https://saref.etsi.org/saref4ener/Reduce
Load control event action with value 'reduce'
- belongs to
- s4ener:EventActionConsumec
s4ener:EventActionProducec
Rejected back to ToC or Named Individuals ToC
IRI: https://saref.etsi.org/saref4ener/Rejected
Instruction was rejected
- belongs to
- s4ener:InstructionStatusc
Relative cost back to ToC or Named Individuals ToC
IRI: https://saref.etsi.org/saref4ener/RelativeCost
The incentive type ''relative cost'' defined in the incentive table.
- belongs to
- s4ener:IncentiveTypec
Renewable energy percentage back to ToC or Named Individuals ToC
IRI: https://saref.etsi.org/saref4ener/RenewableEnergyPercentage
The incentive type ''renewable energy percentage'' defined in the incentive table.
- belongs to
- s4ener:IncentiveTypec
Resume back to ToC or Named Individuals ToC
IRI: https://saref.etsi.org/saref4ener/Resume
Load control event action with value 'resume'
- belongs to
- s4ener:EventActionConsumec
s4ener:EventActionProducec
Revoked back to ToC or Named Individuals ToC
IRI: https://saref.etsi.org/saref4ener/Revoked
Instruction was revoked
- belongs to
- s4ener:InstructionStatusc
Rising, aka Rising back to ToC or Named Individuals ToC
IRI: https://saref.etsi.org/saref4ener/Rising
This value tendency codelist element indicates that the tendency of this observation indicates that the value is increasing (i.e., rising).
- belongs to
- s4ener:ValueTendencyc
Running back to ToC or Named Individuals ToC
IRI: https://saref.etsi.org/saref4ener/Running
Power sequence state with value 'running'
- belongs to
- s4ener:PowerSequenceStatec
Scheduled back to ToC or Named Individuals ToC
IRI: https://saref.etsi.org/saref4ener/Scheduled
Power sequence state with value 'scheduled'
- belongs to
- s4ener:PowerSequenceStatec
Scheduled paused back to ToC or Named Individuals ToC
IRI: https://saref.etsi.org/saref4ener/ScheduledPaused
Power sequence state with value 'scheduled paused'
- belongs to
- s4ener:PowerSequenceStatec
Setpoint back to ToC or Named Individuals ToC
IRI: https://saref.etsi.org/saref4ener/SetPoint
This datapoint indicates a setpoint.
- belongs to
- s4ener:Usagec
Skewness back to ToC or Named Individuals ToC
IRI: https://saref.etsi.org/saref4ener/Skewness
The usage of this datapoint is the power skewness (assymetry of the distribution).
- belongs to
- s4ener:Usagec
Stable, aka Stable back to ToC or Named Individuals ToC
IRI: https://saref.etsi.org/saref4ener/Stable
This value tendency codelist element indicates that the tendency this observation has is to stay stable, instead of rising or falling.
- belongs to
- s4ener:ValueTendencyc
Started back to ToC or Named Individuals ToC
IRI: https://saref.etsi.org/saref4ener/Started
Instruction was executed
- belongs to
- s4ener:InstructionStatusc
Succeeded back to ToC or Named Individuals ToC
IRI: https://saref.etsi.org/saref4ener/Succeeded
Instruction finished successfully
- belongs to
- s4ener:InstructionStatusc
Upflex back to ToC or Named Individuals ToC
IRI: https://saref.etsi.org/saref4ener/Upflex
This datapoint indicates the upper flexibility.
- belongs to
- s4ener:Usagec
Upper Limit, aka Upper limit back to ToC or Named Individuals ToC
IRI: https://saref.etsi.org/saref4ener/UpperLimit
The PowerEnvelopeLimitType enumeration for the upper limit.
This datapoint indicates the upperlimit.
- belongs to
- s4ener:PowerEnvelopeLimitTypec
s4ener:Usagec
Vanish back to ToC or Named Individuals ToC
IRI: https://saref.etsi.org/saref4ener/Vanish
The load or generation that is limited will vanish. This is for example the case with curtailing production from solar panels; the potentially generated energy is lost and will never reappear.
- belongs to
- s4ener:PowerEnvelopeConsequenceTypec
References
Normative references
- [0] ETSI TS 103 410-1 (V2.1.1): "SmartM2M; Extension to SAREF; Part 1: Energy Domain".
- [1] ETSI TS 103 264: "SmartM2M; Smart Applications; Reference Ontology and oneM2M Mapping".
- [2] ETSI TS 103 548: "SmartM2M; SAREF reference ontology patterns".
- [3] Void.
- [4] EN 50631-1:2023: "Household appliances network and grid connectivity - Part 1: General requirements, generic data modelling and neutral messages", (produced by CEN).
- [5] EN 50631-2:2023: "Household appliances network and grid connectivity - Part 2: Product specific mappings, details, requirements and deviations", (produced by CEN).
- [6] EN 50631-3-1:2023: "Household appliances network and grid connectivity - Part 3-1: Specific Data Model Mapping: SPINE and SPINE-IoT", (produced by CEN).
- [7] EN 50631-4-1:2023: "Household appliances network and grid connectivity - Part 4-1: Communication Protocol Specific Aspects: SPINE, SPINE-IoT and SHIP", (produced by CEN).
- [8] EN 50491-12-2:2022: "General requirements for Home and Building Electronic Systems (HBES) and Building Automation and Control Systems (BACS) - Part 12-2: Smart grid - Application specification - Interface and framework for customer - Interface between the Home / Building CEM and Resource manager(s) - Data model and messaging", (produced by CEN).
Informative references
- [i.1] TNO, EEBus, Energy@Home: "SAREF4EE: The extension of SAREF for EEBus and Energy@Home".
- [i.2] Mandate M/490 for smart grids (March 2011): "Standardization Mandate to European Standardisation Organisations (ESOs) to support European Smart Grid deployment".
- [i.3] IEC TR 62746-2:2015: "Systems interface between customer energy management system and the power management system - Part 2: Use cases and requirements".
- [i.4] ETSI TR 103 411: "SmartM2M Smart Appliances SAREF extension investigation".
- [i.5] Mente Konsman and Ewoud Werkman in collaboration with CLC/TC 205 WG 18 members: "S2 White paper", 2023.
- [i.6] S2-ws-json: "A WebSockets and JSON based protocol implementing the EN 50491-12-2 'S2' standard for home and building energy management".
- [i.7] Open Geospatial Consortium: "OGC Abstract Specification Topic 20: Observations, measurements and samples", 2023.
- [i.8] European Commission: "Horizon 2020 project InterConnect".
- [i.9] European Commission (JRC and DG ENER): "Code of Conduct on energy management related interoperability of Energy Smart Appliances (V.1.0)", 2024.
- [i.10] Daniele, L., Solanki, M., den Hartog, F., Roes, J. (2016): "Interoperability for Smart Appliances in the IoT World". In: Groth, P., et al. The Semantic Web - ISWC 2016. ISWC 2016. Lecture Notes in Computer Science, vol 9982. Springer, Cham. .
- [i.11] H2020 InterConnect project Deliverable 2.3: "Interoperable and Secure Standards and Ontologies", December 2021.
- [i.12] Guitart L., Damas Silva C., Liverani S., Daniele L., Rua D.: "A DSO Standard Interface to support grid management", H2020 InterConnect project white paper (2024).
- [i.13] ETSI TR 103 781: "SmartM2M; Study for SAREF ontology patterns and usage guidelines".
- [i.14] ETSI TS 103 673: "SmartM2M; SAREF Development Framework and Workflow, Streamlining the Development of SAREF and its Extensions".
Acknowledgements
The editors would like to thank the ETSI SmartM2M technical committee for providing guidance and expertise.
Also, many thanks to the ETSI staff and all other current and former active Participants of the ETSI SmartM2M group for their support, technical input and suggestions that led to improvements to this ontology.
Also, special thanks goes to the ETSI SmartM2M Technical Officer Guillemin Patrick for his help.
This documentation page was generated automatically using SPARQL-Generate, developed by Maxime Lefrançois. The SAREF public portal, the SAREF sources with continuous integration and deployment, the SAREF Pipeline software, and ETSI Technical Specification TS 103 673 v1.1.1 "SAREF Development Framework and Workflow, Streamlining the Development of SAREF and its Extensions", have been developed in the context of the ETSI STF 578, which followed the ETSI STF 556.
Independent from the ActuatorSwitch class, the ActuatorLevel class enables a user or application to model LEVEL commands (start, up, percentageAbsolute, relative, etc.). This can be used to dim a light, set the speed of an electric motor, etc.
